Feature:





  • Designed to replace camera cage handle, easy to carry.
  • 3 types, 5 plugs in total.
  • Silicon rubber grip to increases the coefficient of friction.
  • Suitable for the most on-market camera cages, SmallRig, Tilta, Gondor and etc...

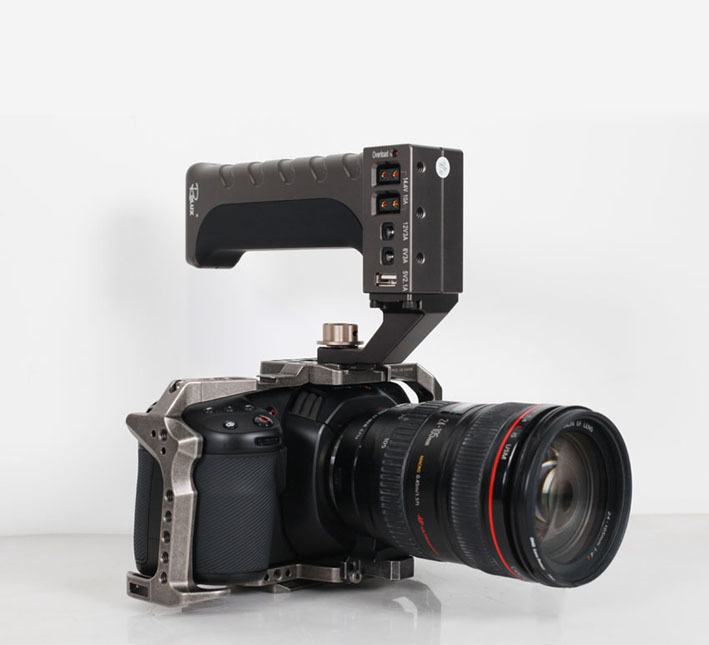

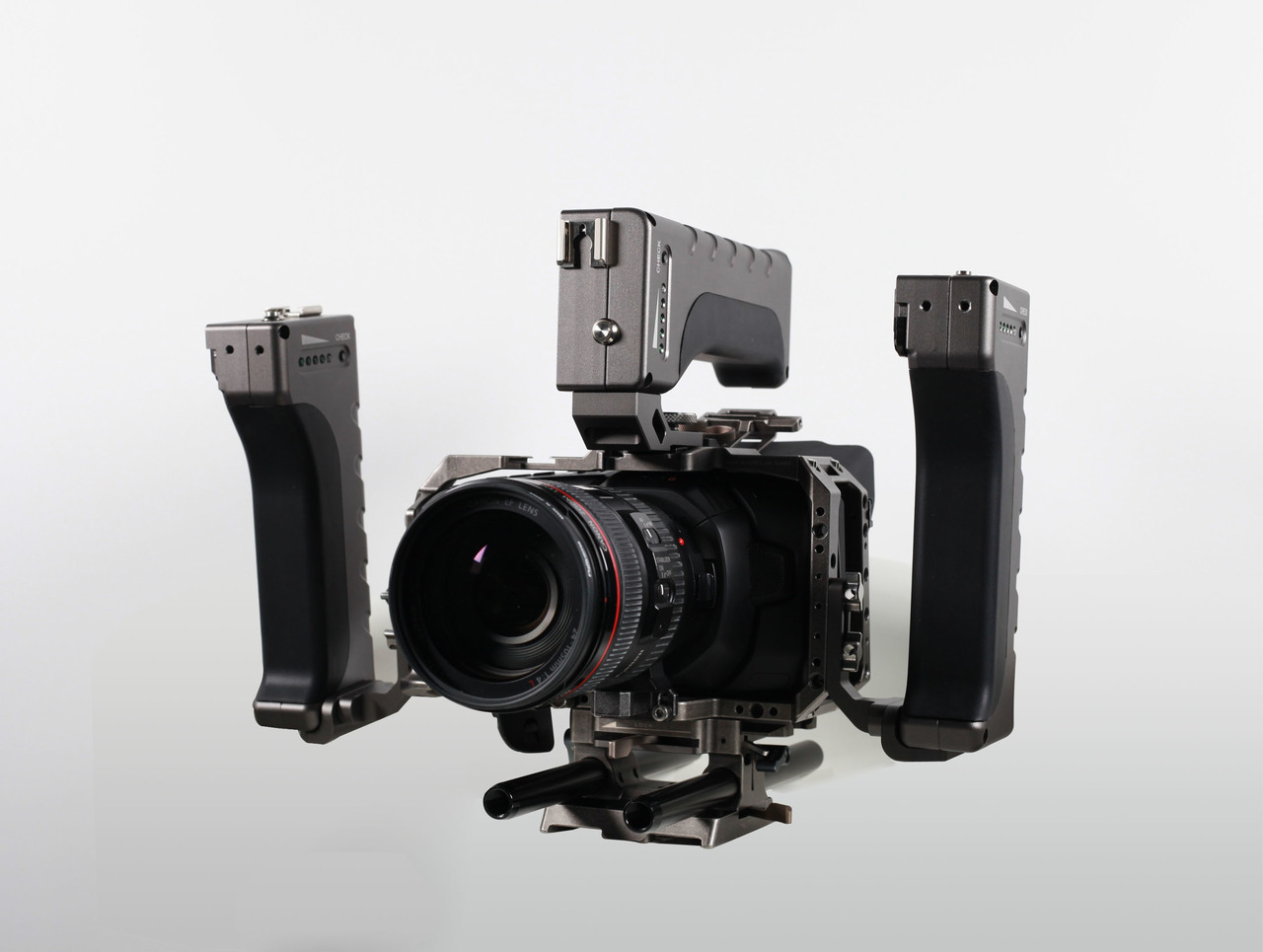

  • Can be used as a hand, can be used as a side grip.

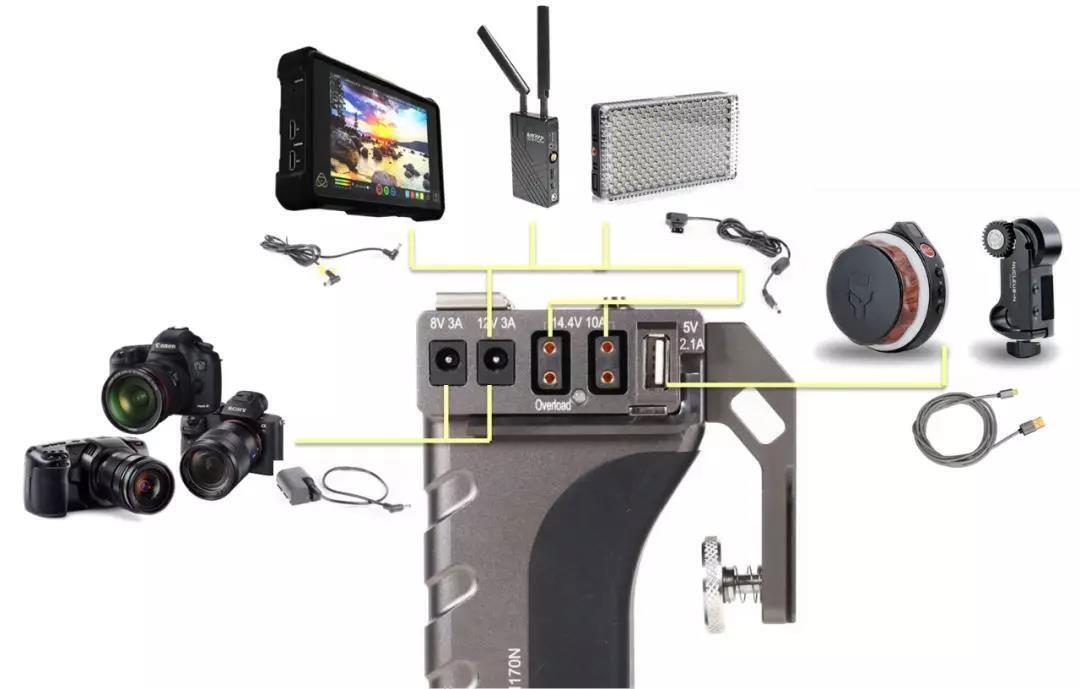

  • Provide 4 different voltages, can supply all kinds of equipment on the package at the same time.
  • Low static power consumption, low temperature coefficient, strong anti-interference ability.
  • With the latest current distribution technology, two D-Tap port can maxium output current to 10A.
  • Included a dummy battery. (Options: Canon LP-E6, Sonly FW-50, Sony NP-FZ100, Panasonic DMW-BLF19E)





Specification:

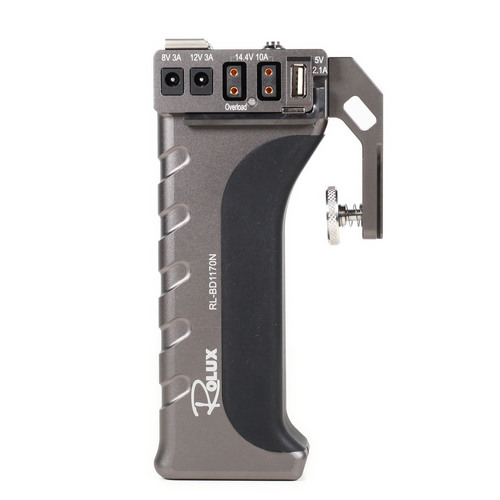

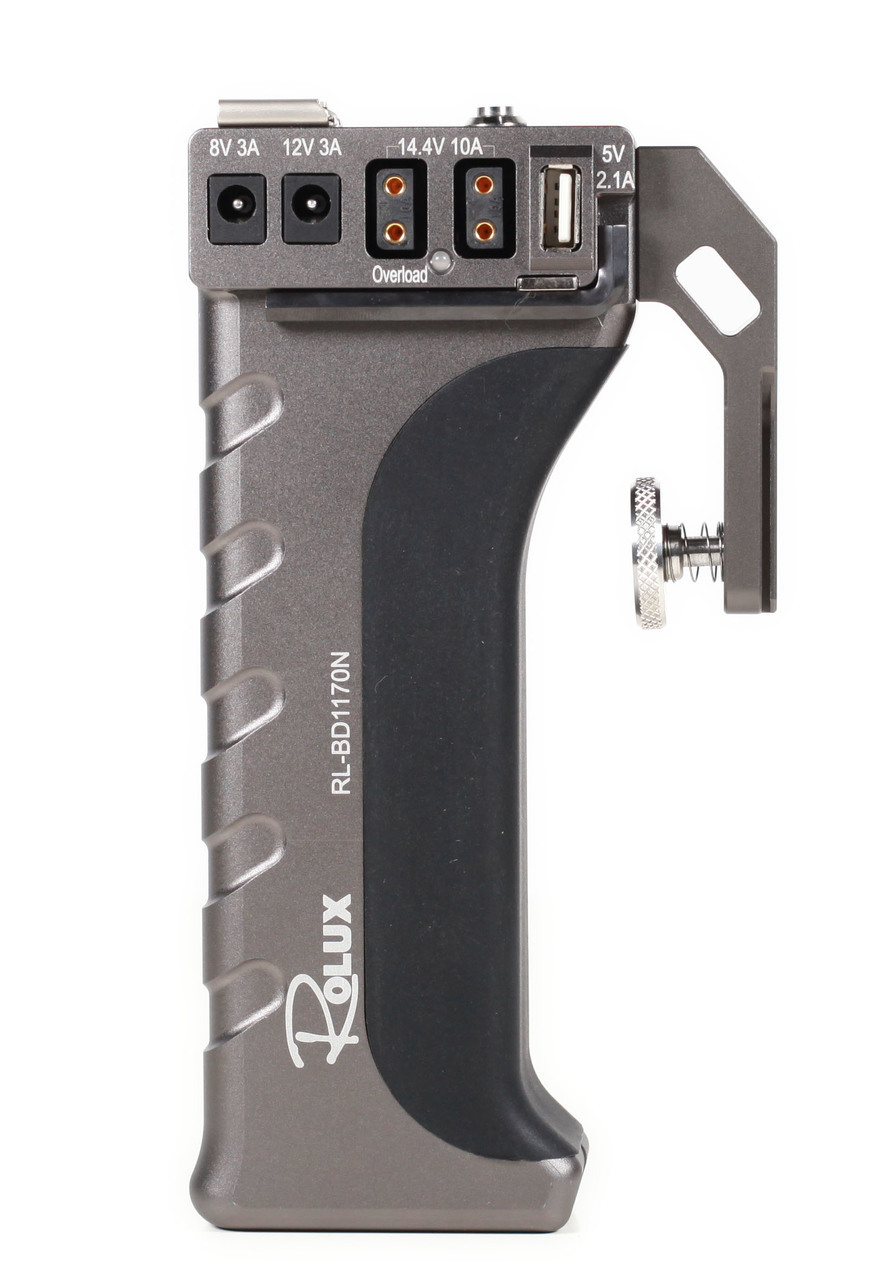

Brand: ROLUX
Model: RL-BD1170N
Battery Capacity:72Wh, 5000mAh
Working Temperature:0℃ to 40℃
Power Output:
Battery Power :70Wh
2 x D-TAP: 14.4V, MAX. 10A
1 x USB: 5V, MAX. 2.1A
1 x DC1: 12V, MAX. 3A
1 x DC2: 8V, MAX. 3A
Handle Size: : 18 x 4 x 7cm

Handle Weight: 0.6kg

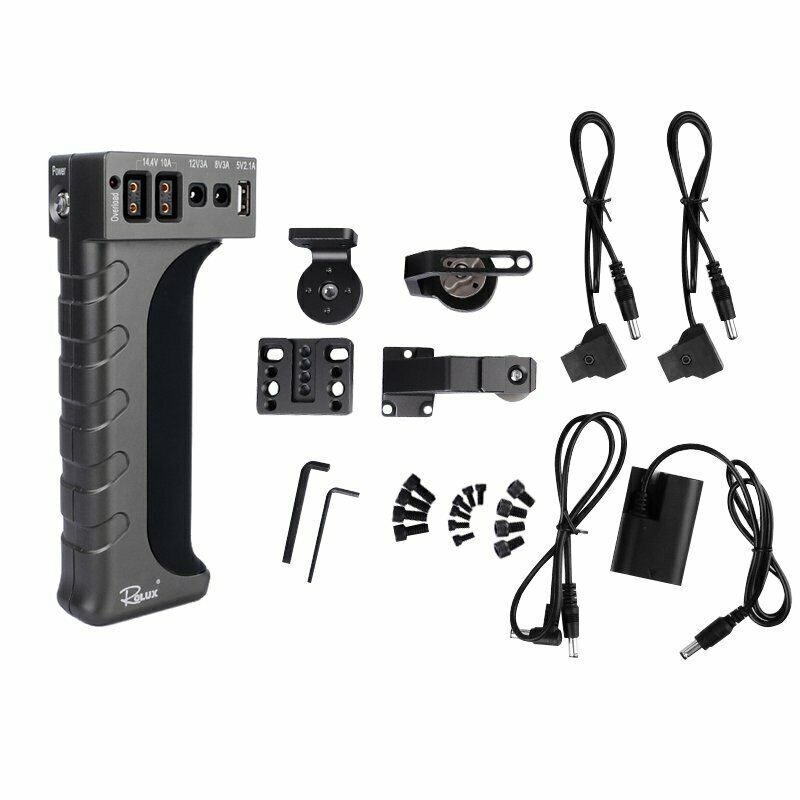

Package included:



1 x Power handle
1 x Bottom universal connector
1 x Side handle connector
1 x Top handle connector
1 x Top handle cheese plate
1 x M4 Allen wrench
1 x 1/4''-20 Hexagon(specification 3/16'')L wrench
4 x 1/4''-20 (specification 3/8'')screw
4 x 1/4''-20 (specification 1/2'')screw
6 x M4-8 Cylindrical head socket head cap screw
1 x 5.5*2.5mm DC to 5.5*2.1mm DC power cable
2 x D-tap to 5.5*2.1mm DC power cable
1 x Dummy battery
1 x User Manual

SKU 465787365689
Barcode # B0882PYSFJ
Brand Rolux
Shipping Weight 1.0000kg
Shipping Width 0.400m
Shipping Height 0.300m
Shipping Length 0.100m
