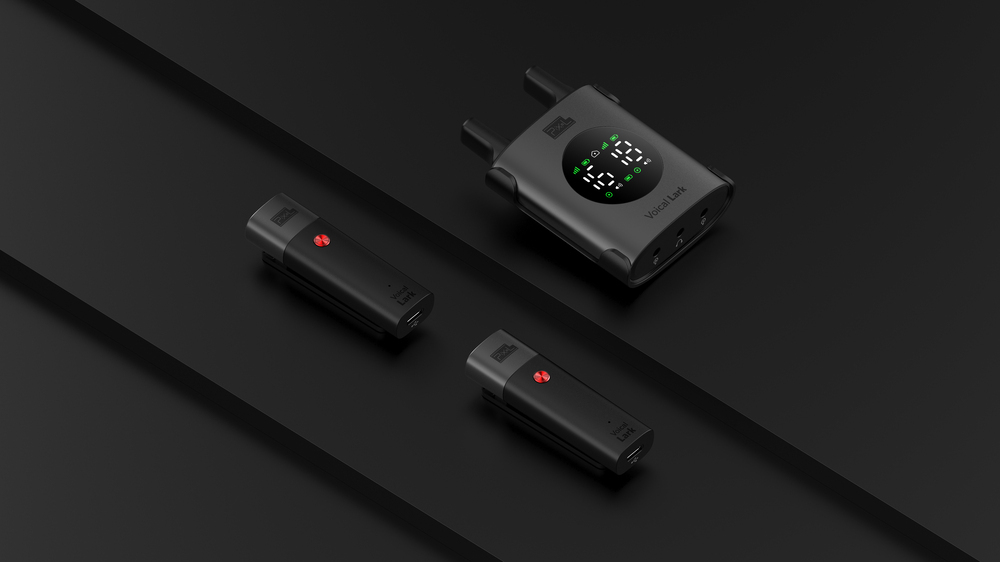

The new Pixel Voical - Lark is compact UHF wireless microphone system with built in reverberation modes to help recording clean, vivid and ethereal audio along with simulative sense of space of their desired scenarios.

With advanced noise cancellation technology, the microphone will smartly filter out unwanted low and high frequency noise with no foam or furry windshield requird.

No more crackling. With wider range of sound pick-up, the microphone remains distortion-free under high sound pressure level. No more time wasting in post-production.

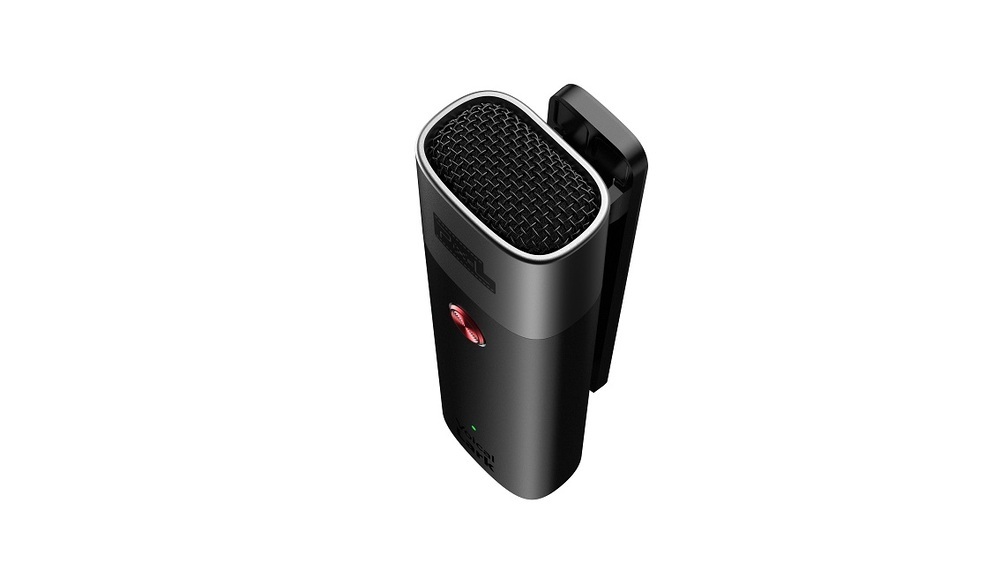

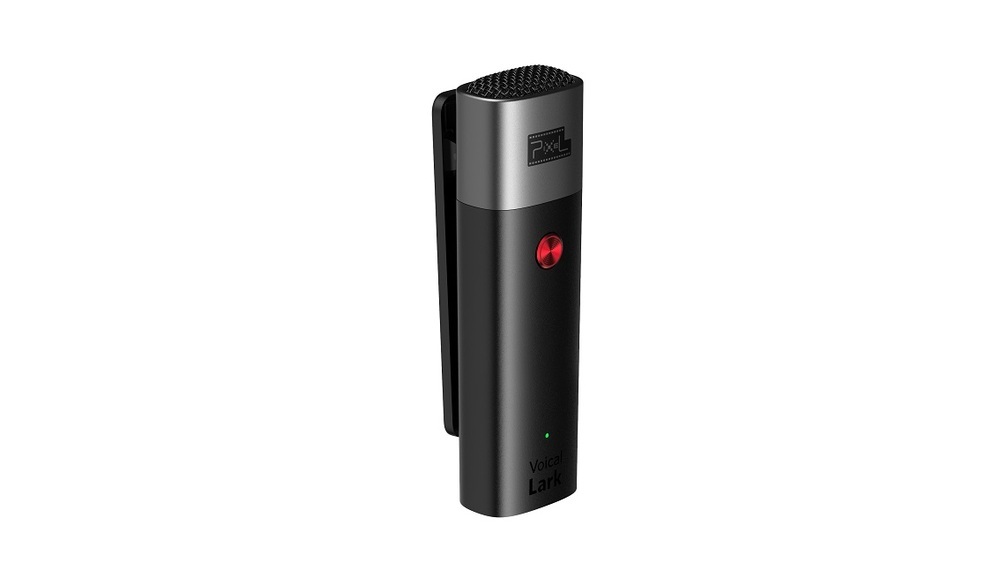

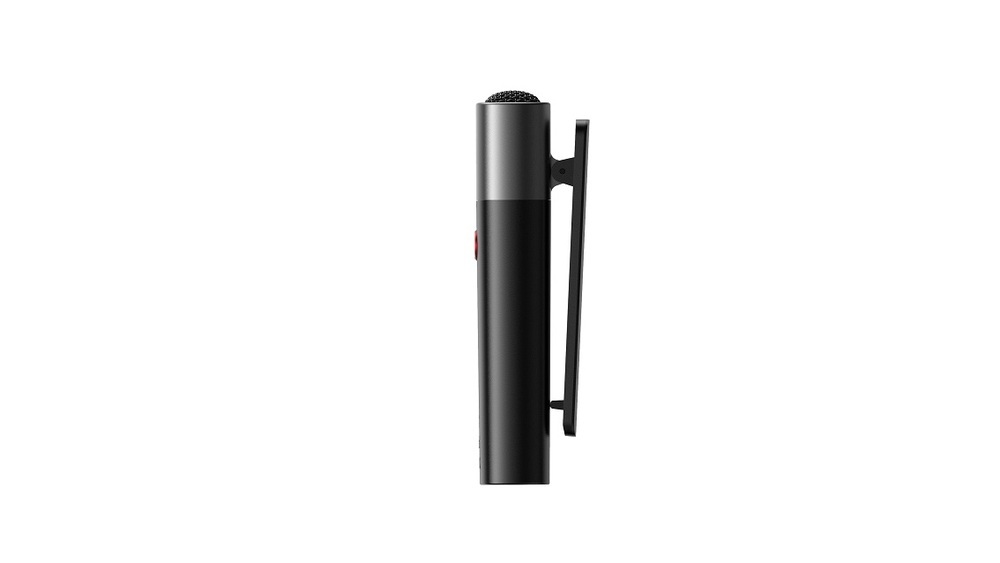

THE TRANSMITTER (TX)

Measuring in at an ultra-compact 20mm x 20mm x 70mm and weighing just 23g, the transmitter (TX) unit acts as either a quick and easy clip-on wireless microphone or a compact beltpack transmitter for a lavalier microphone via the 3.5mm TRS input.



  • UHF wireless microphone transmitter.
  • TX and RX have built-in rechargeable batteries, charged via USB-C
  • Up to 4 hours on a full charge, including a battery-saver mode
  • The transmitter and receiver pair in just a few seconds
  • 9 channels
  • Use up to 9 systems in one location.
  • Working distance: 0-30m (with no antenna), 0-80m(With antenna fitted).
  • Size: 20mm x 20mm x 70mm
  • Weight: 23g
  • Running hour: about 4 hours

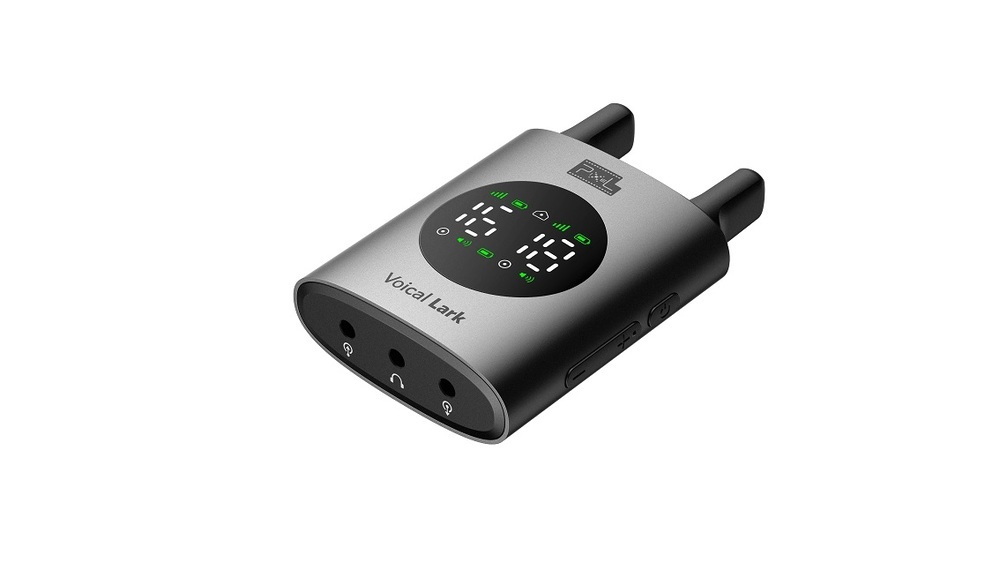

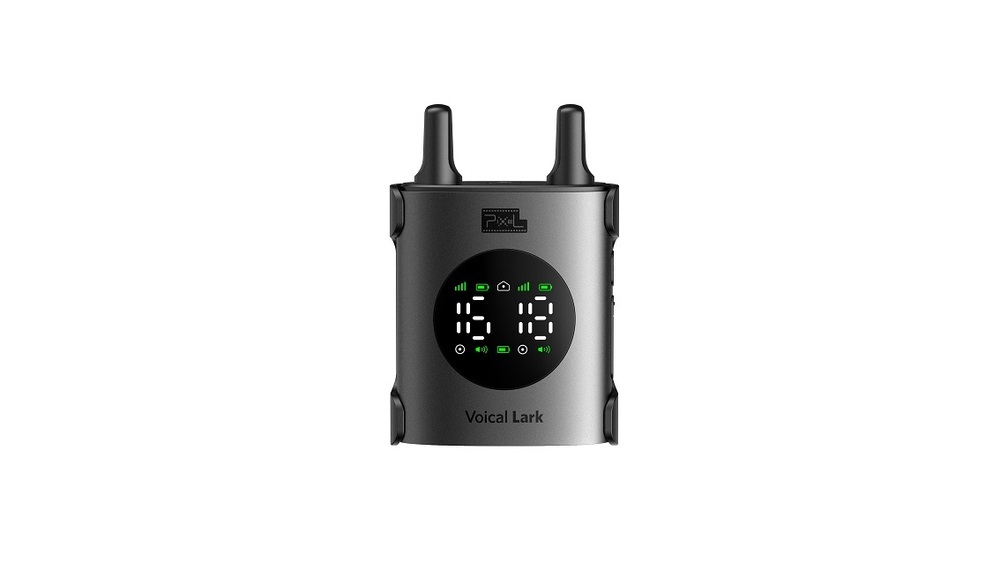

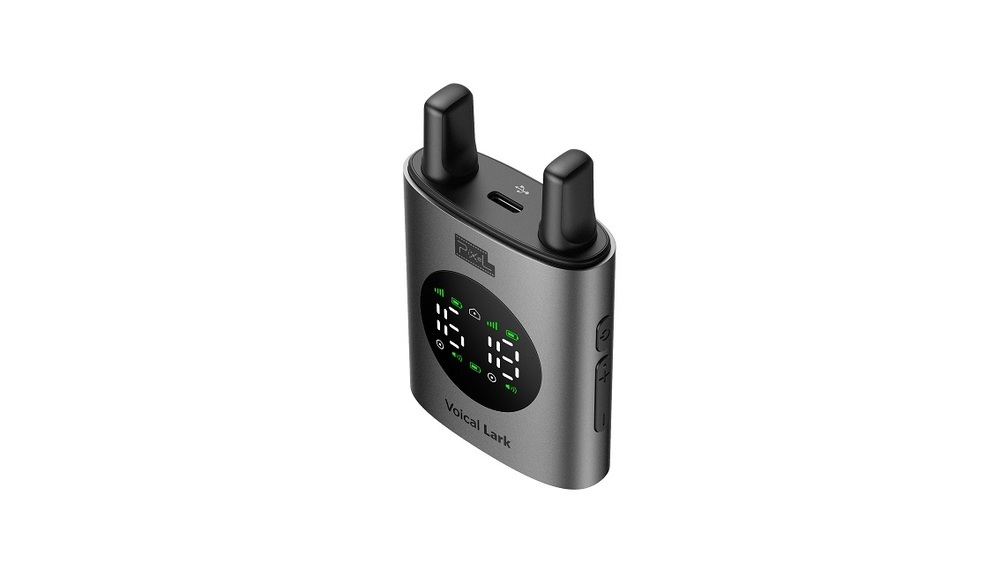

THE RECEIVER (RX)

Voical-Lark Wireless Microphone set has 18 channels, it allows in total 9 sets of Pixel Voical-Lark microphone working at the same time in the same location. 2“ LED display screen allow users to check the current settings easily. The RX is just as compact, measuring only 57mm x 30mm x 86mm and weighing only 85g, it can be snug in your camera’s shoe mount, or clips easily onto your camera strap or an item of clothing. The supplied 3.5mm TRS output cable plugs into your camera’s audio input.





  • UHF wireless microphone receiver.
  • It supports TRRS to TRS and TRRS to TRRS audio cable (3.5mm)
  • It supports real-time monitoring when connected by TRRS to TRS or TRRS to TRRS cable(3.5mm).
  • TX and RX have built-in rechargeable batteries, charged via USB-C
  • Up to 6 hours on a full charge, including a battery-saver mode
  • The transmitter and receiver pair in just a few seconds
  • LCD screen on RX unit
  • 18 channels
  • Use up to 9 systems in one location.
  • Working distance 0-30m (with no antenna), 0-80m(With antenna fitted)
  • Size: 57mm x 30mm x 86mm
  • Weight: 85g
  • Running hour: about 8 hours



VOICAL MIC

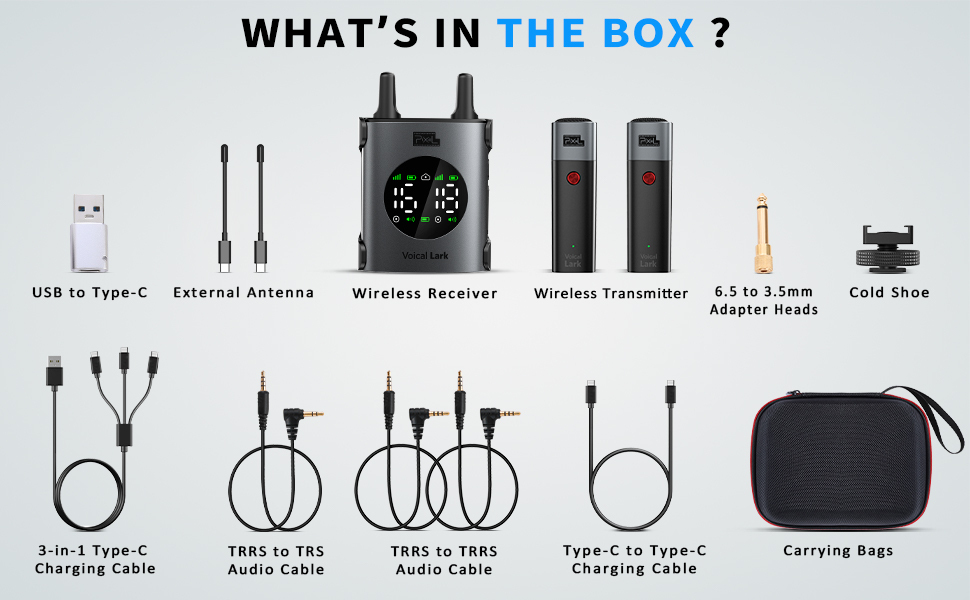

package included
multiple casecade
Pixel wireless microphone



2 transmitter
TRANSMITTER SPECIFICATIONS



  • Battery Capacity: 450mAh
  • Woking Time: 4Hrs each, up to 8Hrs in total.
  • Charge Hour: 2Hrs
  • Weight: 84.5g/2.9oz



  • Working distance up to 200M with the external antenna
  • Super noise reduction
  • Slime and Lightweight

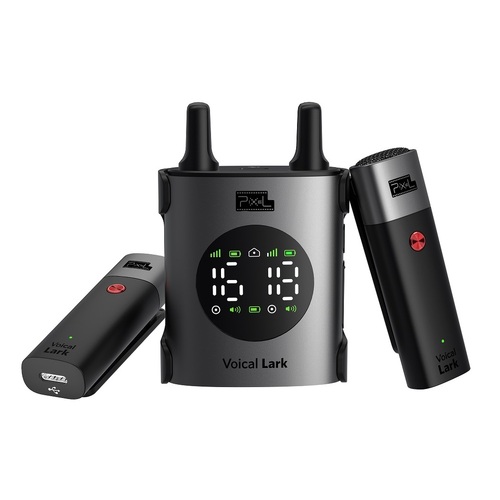

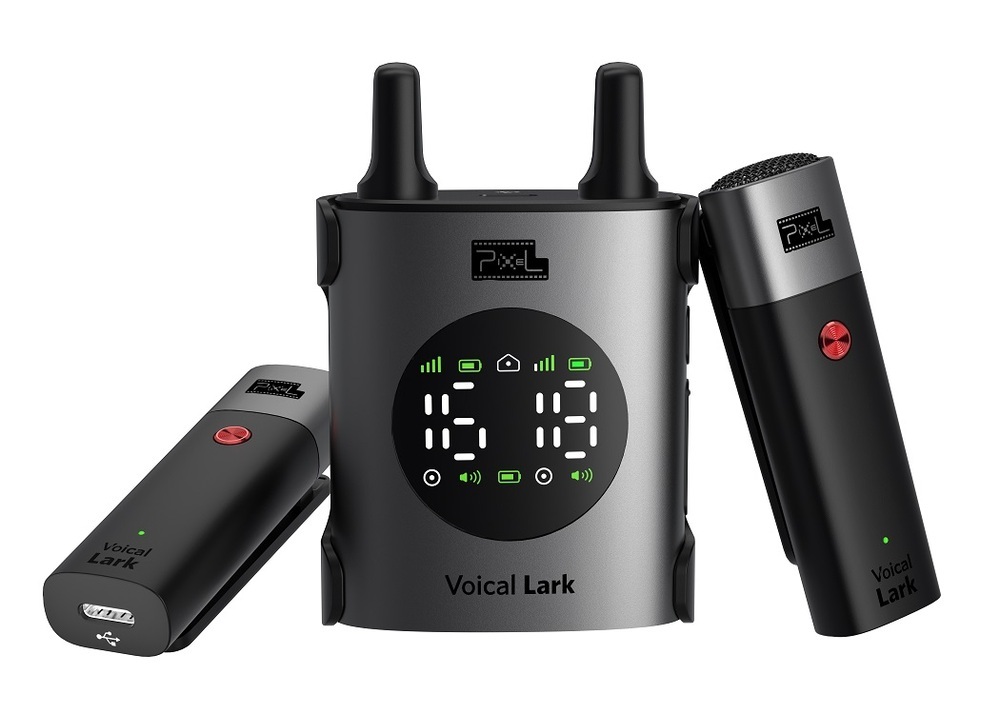

Pixel Wireless Lapel Microphone with 1 Receiver / 2 Transmitter

RECEIVER SPECIFICATIONS

Woking Frequency: UHF 600MHz±10MHz

Transmit Power: >10dBm

Acceptance Sensitivity: < -108dBm @12dB SINAD

Signal to Noise Ratio: >70dB

Working Time: 8Hrs

Battery Capacity: 1200mAh

Power Consumption: up to 8Hrs

Charge Hours: 2Hrs

Weight: Transmitter 22.3g/0.7oz

Working Distance: 100 – 200 Meters (110-220 yards) without obstacles



Auto Connected

PAIR

Indications

Auto Connected

This intelligent wireless lapel microphone transmitter and receiver will pair automatically once turn on the device. Easy and Convenient to use.

Auto Avoid Interference Frequency

This wireless lavalier microphone features 18 channels to choose from, it will changes the frequency automatically when encountering interference, ensure your work in good status.

LCD Display

Equipped with LCD screen display real-time settings such as reverberation mode, signal status, power status, paired channels, pickup status, voice status, simplify your work.

4 modes

descriptions

size

mini

Specifications:

Brand Pixel
Model Voical Lark
Transmission type UHF
Acoustic Principle Pre-polarised pressure transducer
Polar Pattern Omnidirectional
Equivalent Input Noise @ Maximum Gain 21.8dB (A-Weighted)
Frequency Range 600MHz ± 10MHz
External Mic Input 100Hz - 10kHz
Maximum Output Level 79dBu
Maximum SPL 100dB SPL (1kHz @ 1m)
Dynamic Range <180dBA@12dB SINAD
Power Requirements Inbuilt Li-po battery rechargeable via USB-C
Battery Life Up to 4 hours for transmitters, 8 hours for receiver
Analog Inputs 3.5mm TRS lavalier microphone input (transmitter)
Analog Outputs 3.5mm TRS (receiver)
Computer Connectivity USB (firmware update)
OS Requirements (For firmware update only) macOS 10.11 above Windows 10 and above
Form Factor Clip-on pack
Weight (g) TX: 85g , RX: 23g
Dimensions (L x W x H, mm) TX: 55 × 46 × 15mm , RX: 55 x 46 x 15mm
SKU VLark
Barcode # 4895152305730
Brand PIXEL
Shipping Weight 0.5000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.200m
