Pixel Interview Lighting Kit

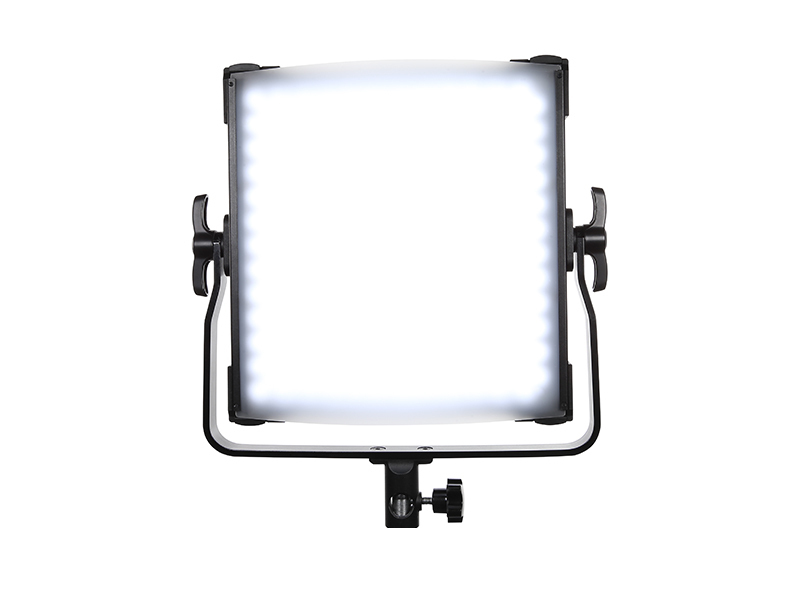

Pixel P45C is a newly released, powerful video/photography LED Light.

Equipped with 600 pieces CRI>96 LED beads, P45C can provide about 22000 Lux @0.5m distance, 6800 Lux @1m distance.

AC and DC ready will allow you to cross the boundary to use the light both inside or outside of your studio.

With wider color temperature rang (3000K-8000K,) this light can be used under most complex lighting environment.

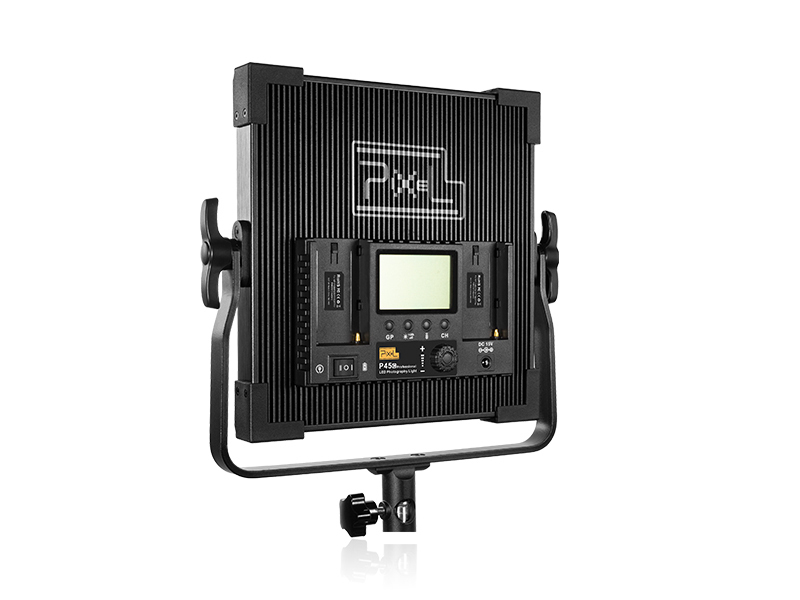

Aviation graded aluminium fins can optimize cooling effect under long term use.

Kit up with New P ixel Voical Lark wireless microphone, you will have the complete interview kit under most efficient cost.

LED Light Specifications:

Model:	Pixel P45C
LED Quantity:	600pcs
Color Temperature Range:	3000 - 8000K
Color rendering index:	≥ 96%
TV Lighting Consistency Index:	≥ 96%
Power:	80W
Lumens:	22000 Lux @ 0.5m 6800 Lux @ 1m
Luminance angle	60°
Average Service Life:	50000 hours
Remote Control Distance:	50 meters (Remote Controller Sold Separately, Model:LR-5)
Power source	Two lithium batteries (Optional) or DC power supply with power adapter
Size:	Approx. 25×24×3cm (LED Light Body)
Net Weight (not including batteries or adapter):	Approx. 1.65KG

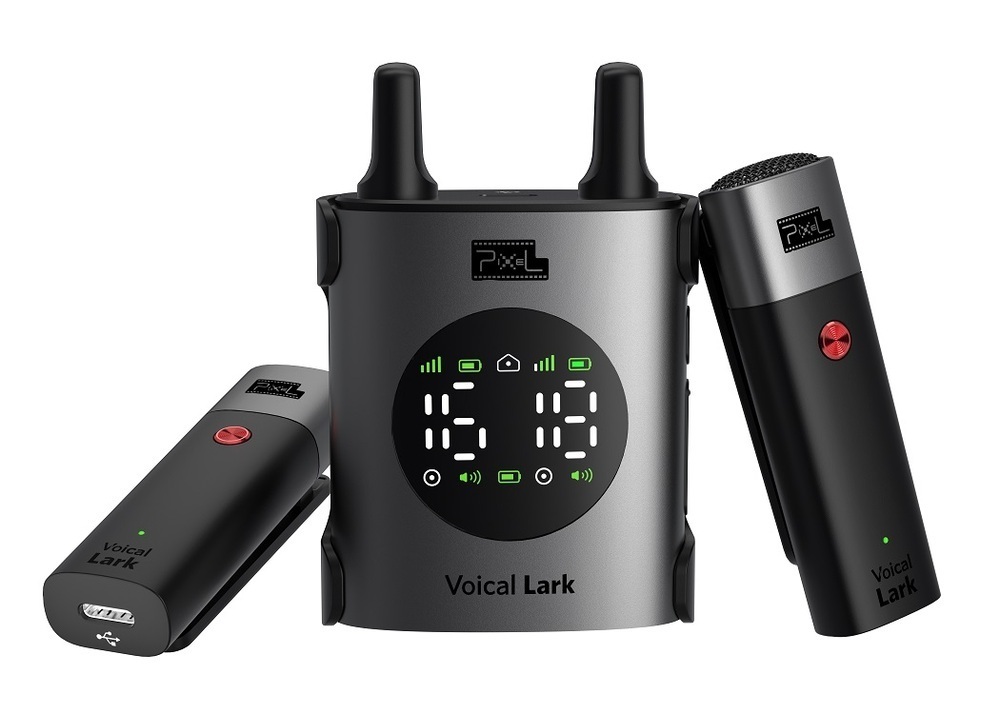

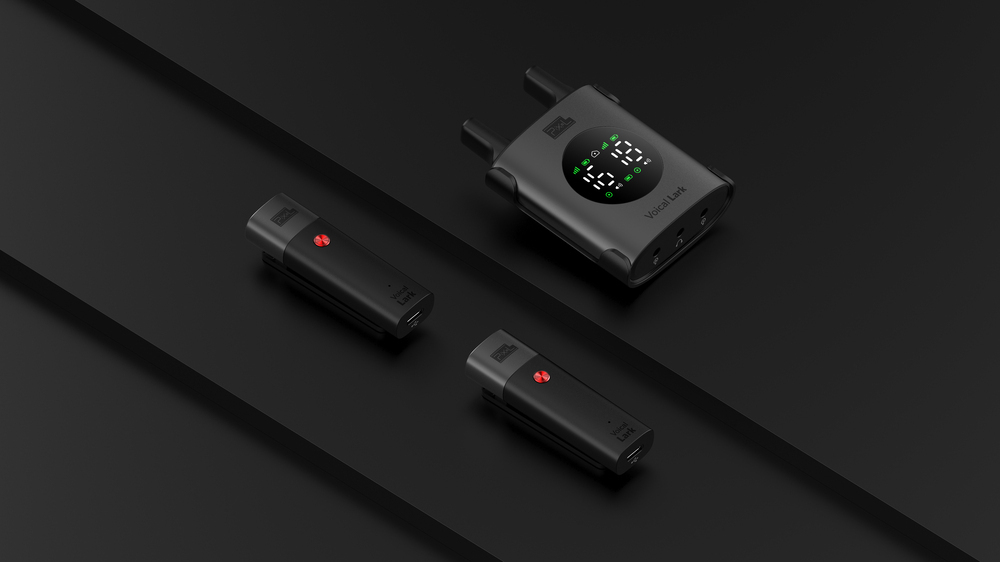

Pixel Voical Lark Microphone Specifications:

Brand	Pixel
Model	Voical Lark
Transmission type	UHF
Acoustic Principle	Pre-polarised pressure transducer
Polar Pattern	Omnidirectional
Equivalent Input Noise @ Maximum Gain	21.8dB (A-Weighted)
Frequency Range	600MHz ± 10MHz
External Mic Input	100Hz - 10kHz
Maximum Output Level	79dBu
Maximum SPL	100dB SPL (1kHz @ 1m)
Dynamic Range	<180dBA@12dB SINAD
Power Requirements	Inbuilt Li-po battery rechargeable via USB-C
Battery Life	Up to 4 hours for transmitters, 8 hours for receiver
Analog Inputs	3.5mm TRS lavalier microphone input (transmitter)
Analog Outputs	3.5mm TRS (receiver)
Computer Connectivity	USB (firmware update)
OS Requirements	(For firmware update only) macOS 10.11 above Windows 10 and above
Form Factor	Clip-on pack
Weight (g)	TX: 85g , RX: 23g
Dimensions (L x W x H, mm)	TX: 55 × 46 × 15mm , RX: 55 x 46 x 15mm

Content List

2 x Pixel P45C Professional LED Light

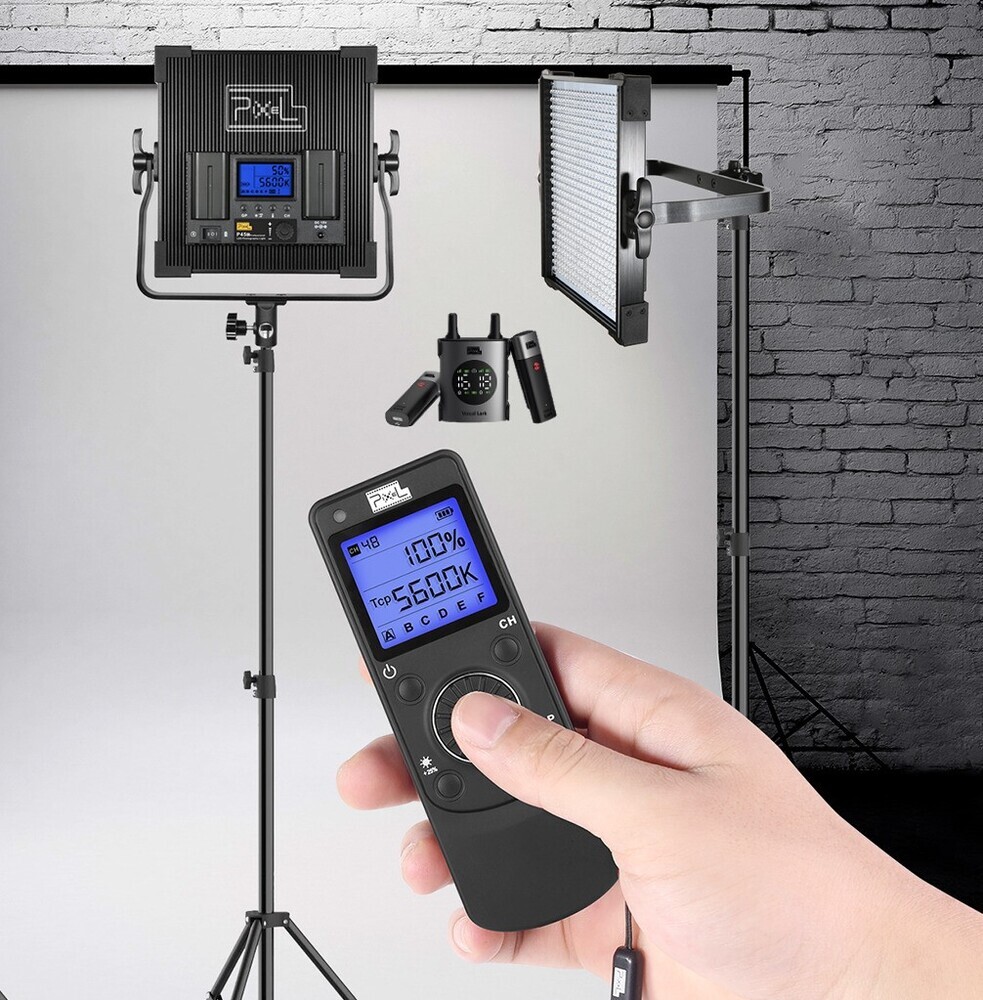

1 x Pixel LR-5 Remote Controller

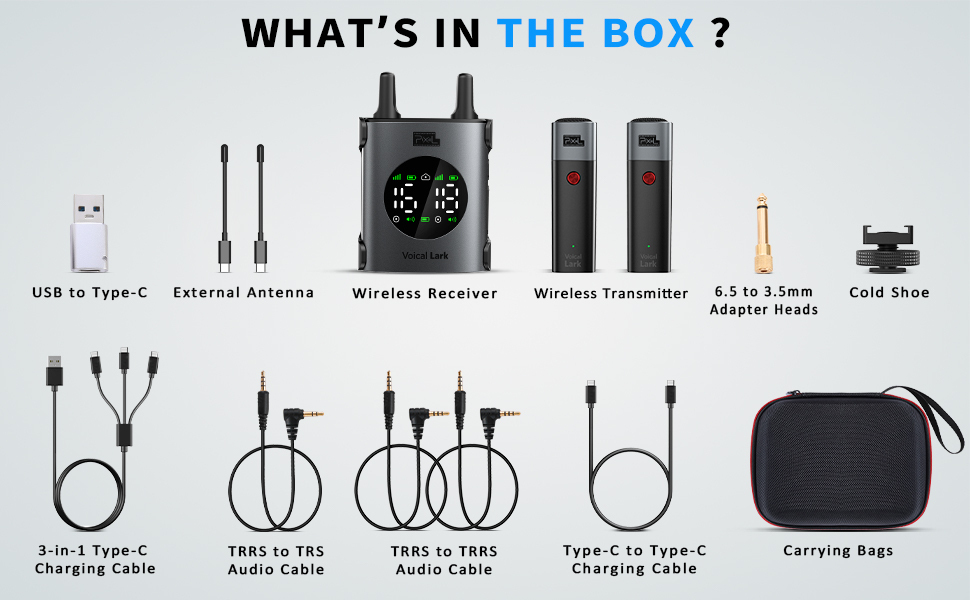

1 x Pixel Voical Lark Microphone Kit

4 x Pixel Gel Diffuser

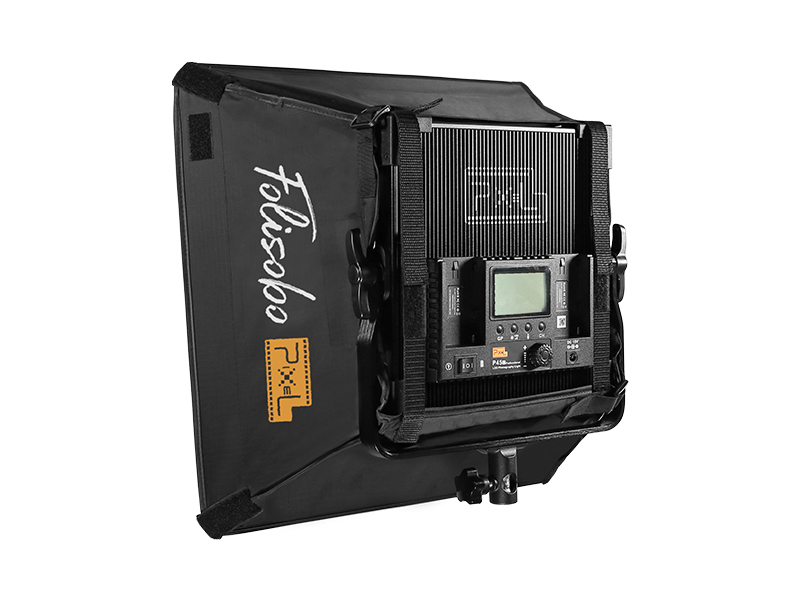

2 x Pixel F5C LED Softbox

2 x DC Power Adaptor

4 x Pixel F970 Battery

1 x Pixel HC-2 Dual Charger

1 x Pixel LED Light Carry Bag

2 x MC FOTO Gear 280cm Aluminium Heavy Duty Light Stand

1 x MC FOTO Light Stand Carry Bag

Woking Frequency: UHF 600MHz±10MHz

Transmit Power: >10dBm

Acceptance Sensitivity: < -108dBm @12dB SINAD

Signal to Noise Ratio: >70dB

Working Time: 8Hrs

Battery Capacity: 1200mAh

Power Consumption: up to 8Hrs

Charge Hours: 2Hrs

Weight: Transmitter 22.3g/0.7oz

Working Distance: 100 – 200 Meters (110-220 yards) without obstacles


Auto Connected This intelligent wireless lapel microphone transmitter and receiver will pair automatically once turn on the device. Easy and Convenient to use.	Auto Avoid Interference Frequency This wireless lavalier microphone features 18 channels to choose from, it will changes the frequency automatically when encountering interference, ensure your work in good status.	LCD Display Equipped with LCD screen display real-time settings such as reverberation mode, signal status, power status, paired channels, pickup status, voice status, simplify your work.
