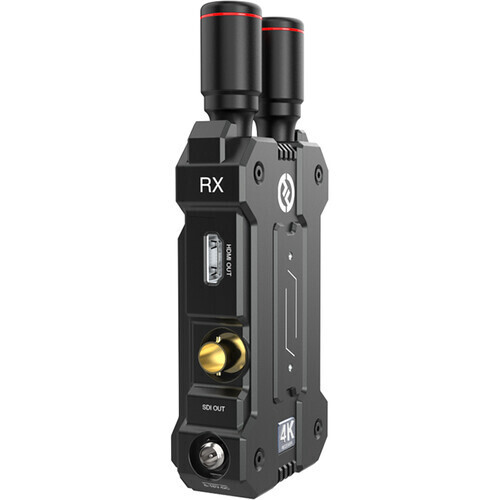

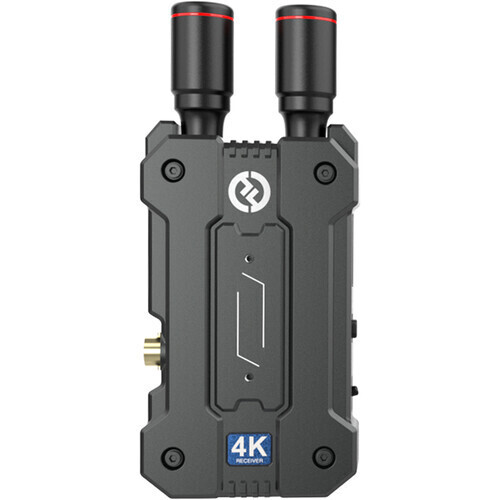

The unit features a built-in frequency scanner to select the clearest frequency for your transmission. The Mars 4K receiver is compact in size, features a bright touchscreen LCD display for configuration, and is built with a corrosion-resistant housing. The unit can be powered using a USB-C source, the included locking DC power adapter, or by using a separately available L-series type battery using an optional battery plate.

Key Features

UHD 4K Video Transmission

The Mars 4K supports UHD 4K30 video transmission for the discerning videographer looking for high-resolution production capability. The Mars 4K also supports FHD and HD formats at varying frame rates such as 24, 30, and 60p.

Long Range and Low Latency

The Mars 4K features a long line-of-sight range of 450' and an ultralow latency of 66 ms. Its upgraded dual-core codec chip is capable of a 12 Mb/s data transfer rate.

HDMI and SDI Interfaces

The Mars 4K receiver supports HDMI and SDI outputs for expanded connectivity and compatibility. The SDI ports provide expanded frame rate flexibility for broadcast and production frame rate standards and compatibility through production and postproduction.

Form Factor

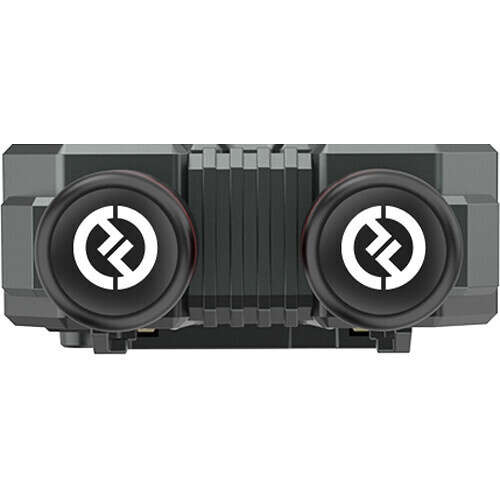

The Mars 4K features corrosion and wear resistance for durability. The design form factor optimizes operational functionality for fast configurations with wiggle-free, bullet-styled antennas attached.

Smart Channel Scanning

Channel assignment options allow for interference-free transmission. A stable connection is possible automatically upon startup. An intelligent channel scan helps determine which ones are occupied and selectable.

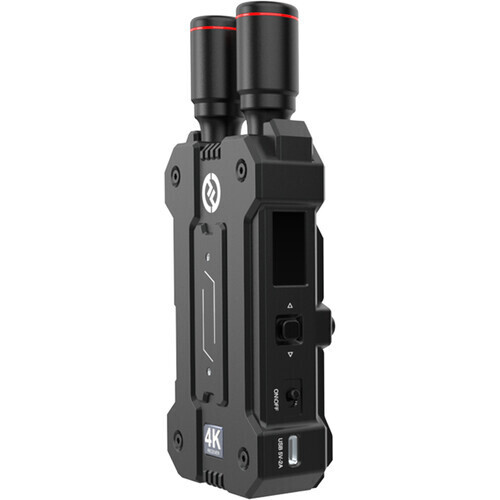

Color Touchscreen LCD

The Mars 4K features a color touch LCD with a user-friendly UI design that enables quick configuration and status checks. Its gamepad-styled button dramatically improves the operational setup experience.

Multiple Power Options

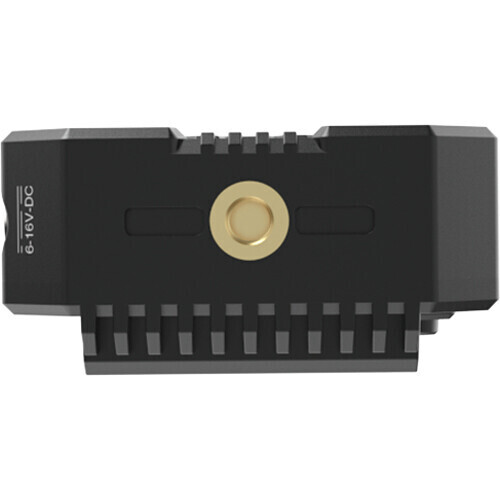

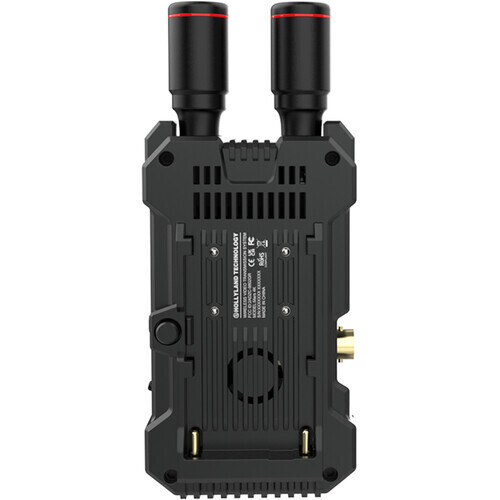

The Mars 4K supports various DC power options: 6 to 16 VDC coax input, L-series/NP-F batteries, and USB-C chargers.

App Monitoring

The Hollyview app for Android and iOS allows you to monitor your transmission on a smartphone or tablet. It allows you to transmit to apps and receivers in the following configurations:

• Transmitter to 1 receiver + 2 apps
• Transmitter to 4 apps
• Mars M1 wireless transceiver monitor to 1 receiver and 2 apps
