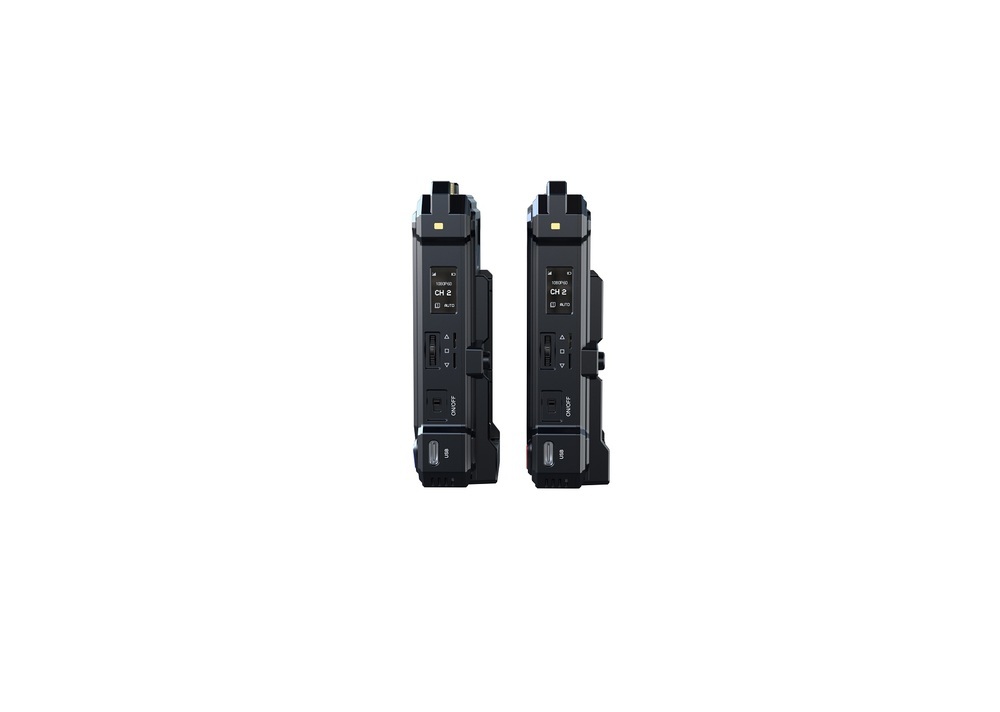

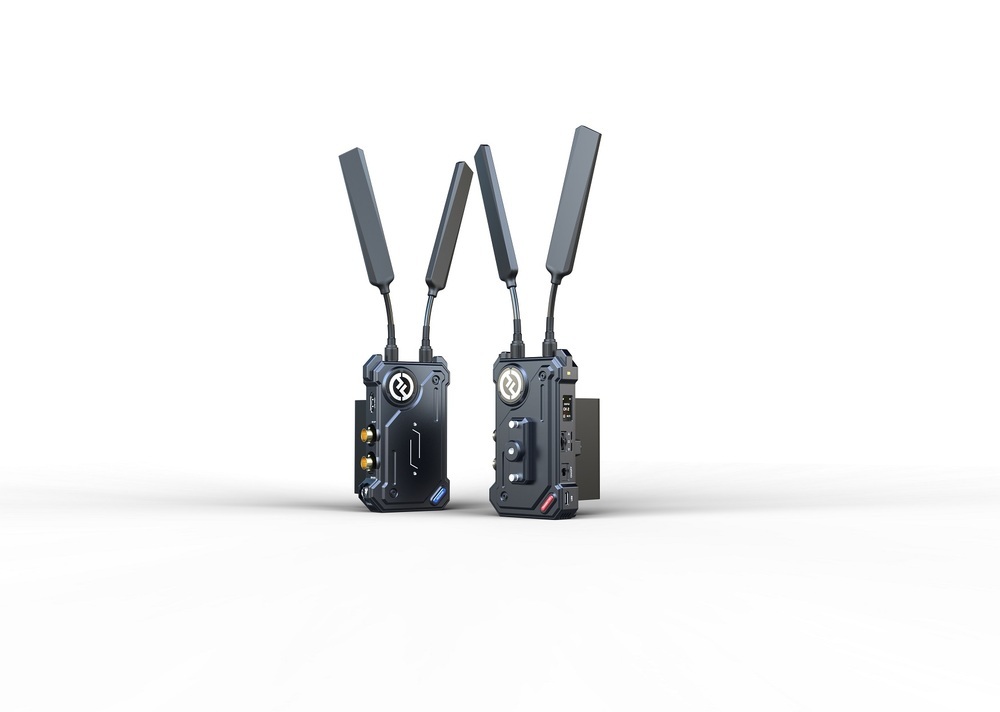

Hollyland Cosmo C1 SDI/HDMI Wireless Transmission System 1000ft

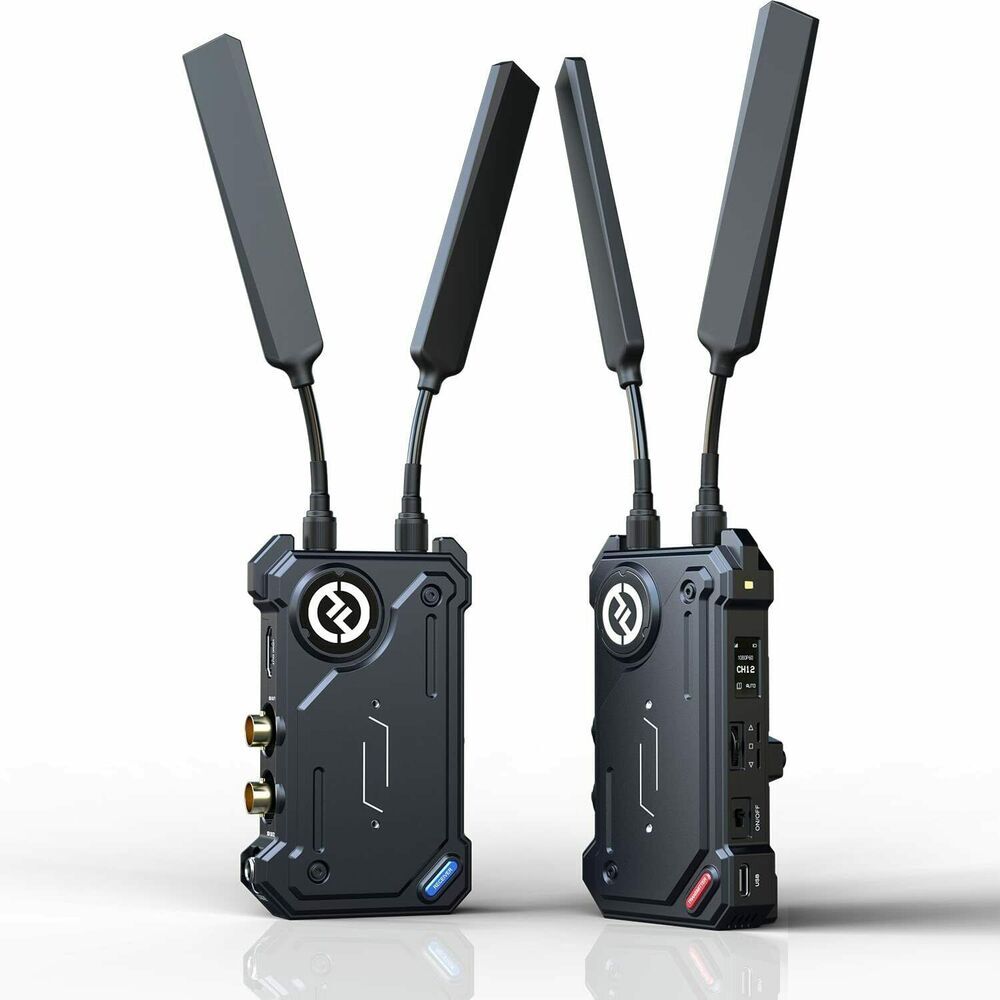

COSMO C1 is using the latest coding, decoding technology, and 5G wireless transmission technology. It can achieve ultra-low latency wireless video transmission. It has a transmission range over 1,000ft with a clean line of sight (LOS) when the transmitter is connected to 1 receiver. And，both transmitter and receiver are equipped with L-series battery plates and can also be powered by USB Type-C port and DC power input.

Features:

As low as 40ms Transmission Latency 2.1000ft Wireless Transmission Range (LOS) 3.Supports Smart Channel Selection
Transmitter Supports SDI Input, HDMI Input, and SDI Loopout.
Receiver Supports 2*SDI Outputs and HDMI output
Supports DC Power Supply, Battery, and USB Type-C Power Supply
Supports UVC Pull-streaming

Specifications:

Wireless Range	1,000ft or 300m (Line-of-Sight)
Channel Bandwidth	20 MHz
Frequency Range	5.1~5.8GHz
Latency	As low as 0.04s
RF Power	≤ 22 dBm
RF Sensitivity	-80 dBm
Wi-Fi	NO

Interfaces

Transmitter Antenna Ports	2 x RP-SMA Male
Receiver Antenna Ports	2 x RP-SMA Male

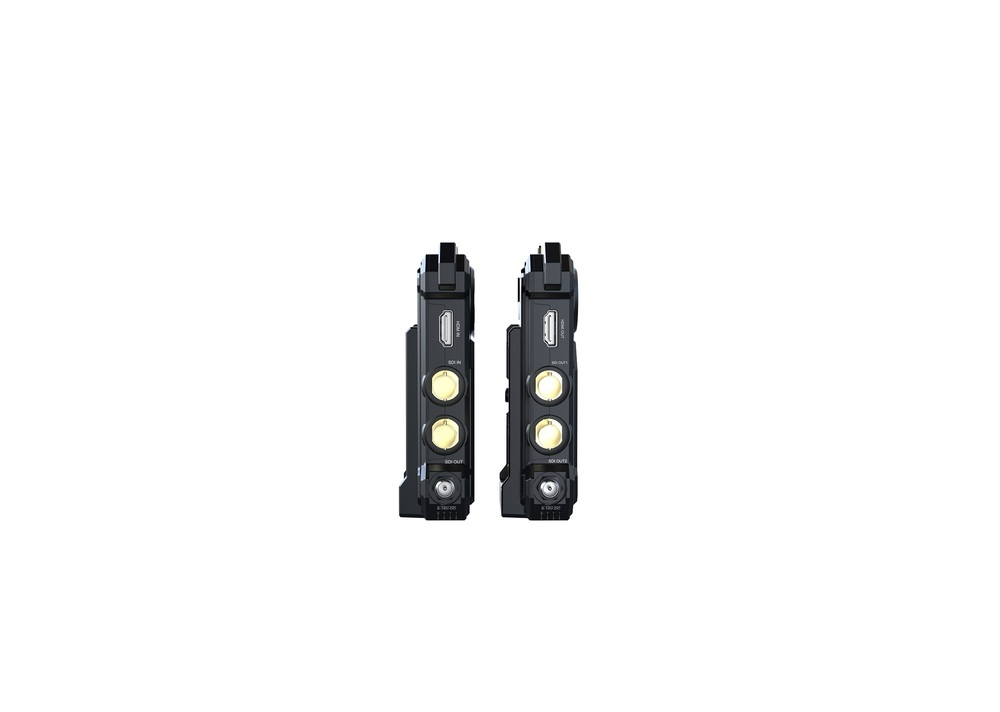

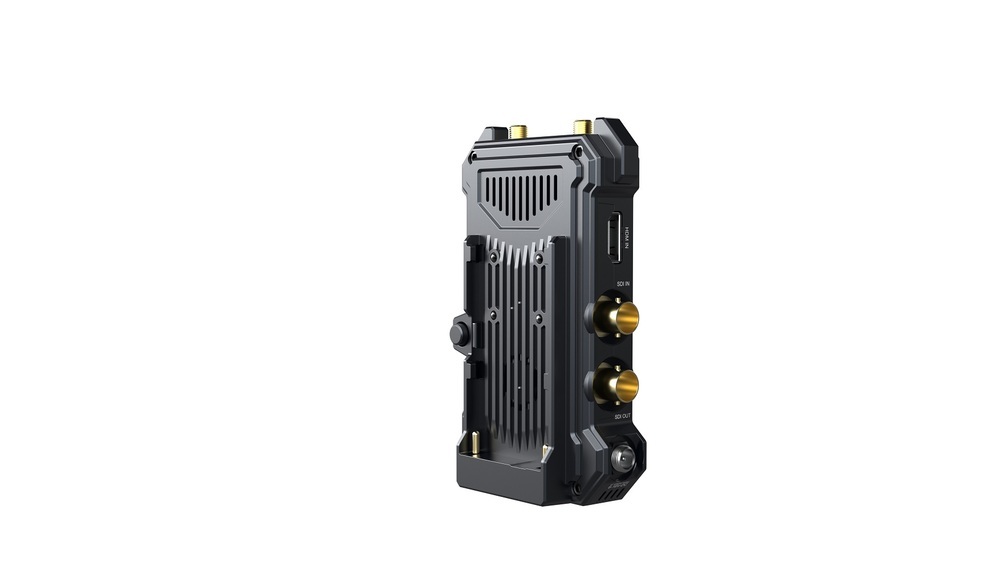

Transmitter Video Connectors	1 x HDMI Input 1 x SDI Input 1 x SDI Loop out
Receiver Video Connectors	1 x HDMI Output 2x SDI Output
Transmitter Other I/O	1 x USB Type-C 1 x DC Power Input
Receiver Other I/O	1 x USB Type-C 1 x DC Power Input
Embedded Audio	HDMI

Format Support

Video Format

HDMI:

480p60
576p50
720p50/59.94/60

1080i50/59.94/60

1080p23.98/24/25/29.9/30
1080p50/59.94/60

Display

Transmitter Panel Type	OLED
Receiver Panel Type	OLED

Power

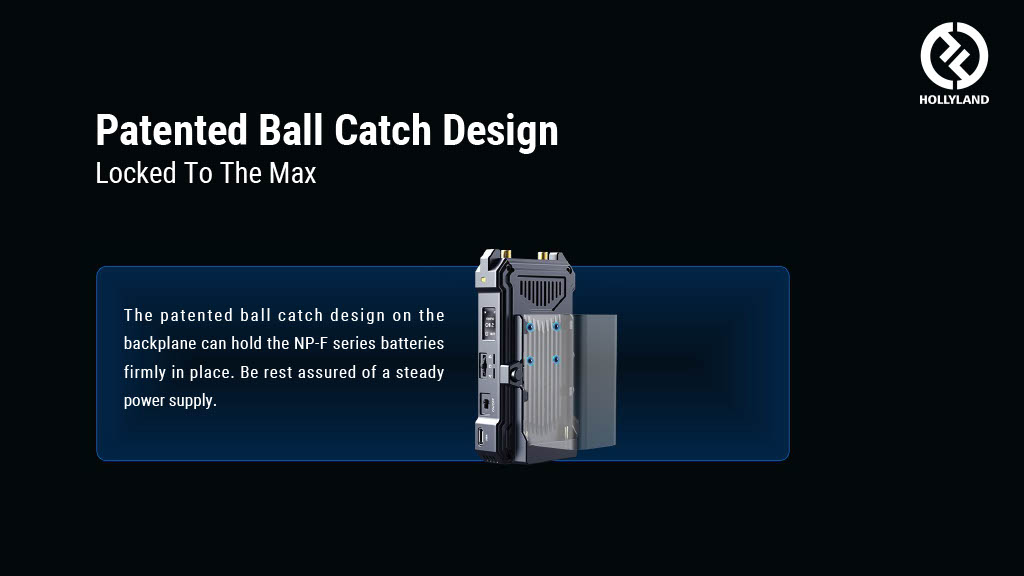

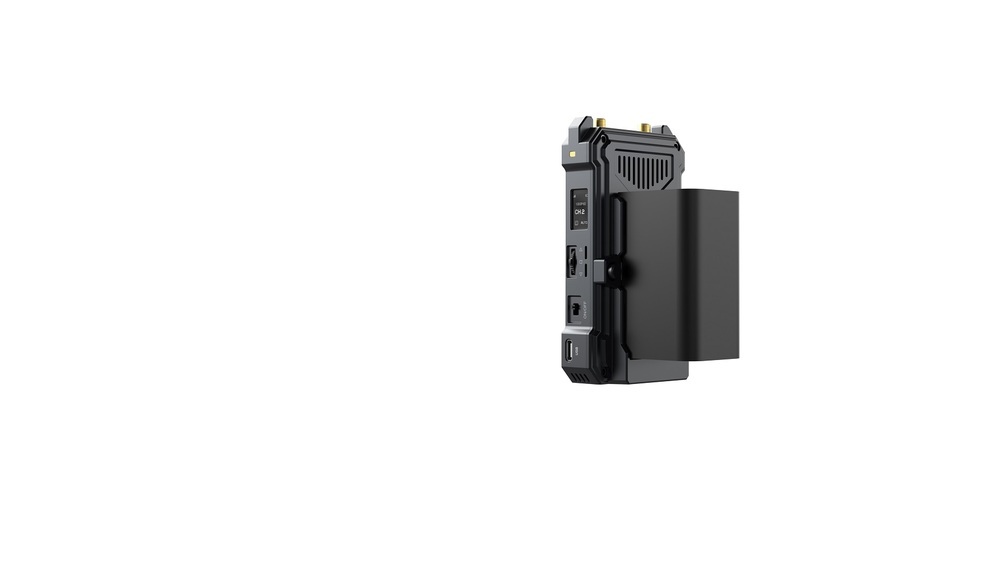

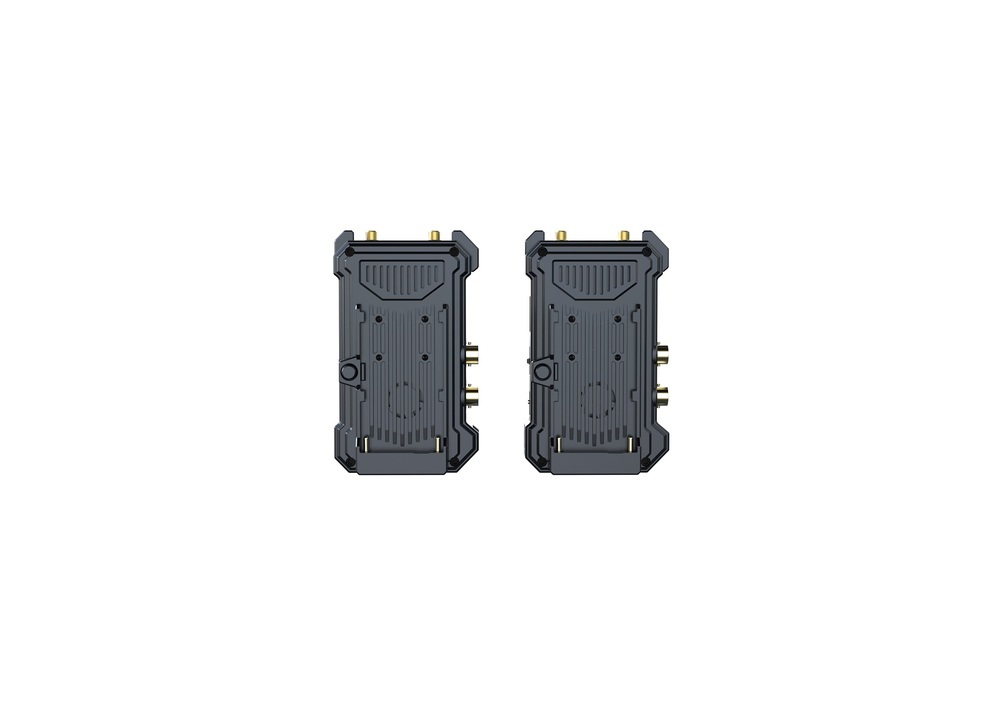

Transmitter Battery Support	1 x Sony L-Series / NP-F Type
Receiver Battery Support	1 x Sony L-Series / NP-F Type
Transmitter Power Connector	Barrel (6 to 12V DC) Input
Receiver Power Connector	Barrel (6 to 12V DC) Input
Transmitter Power Consumption	Device: (<9 W)
Receiver Power Consumption	Device: (<9 W)

General

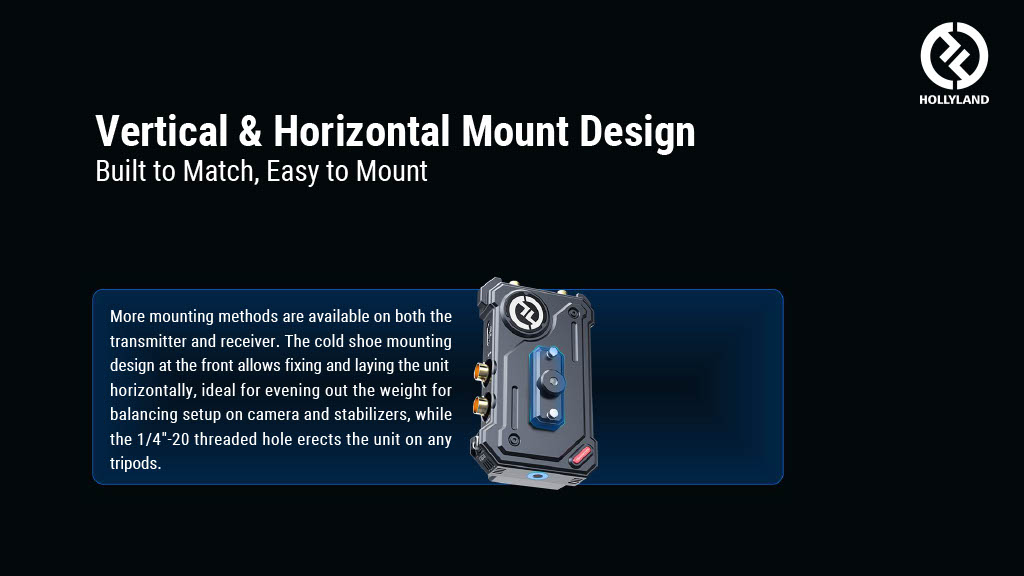

Transmitter Mounting	1 x 1/4"-20 Female
Receiver Mounting	1 x 1/4"-20 Female
Materials	Metal
Transmitter Dimensions	1157032mm(The Battery Plate Exclude)
Receiver Dimensions	1157032mm(The Battery Plate Exclude)
Transmitter Weight	214g
Receiver Weight	210g

Packaging Information

Package Weight	750g
Box Dimensions (LxWxH)	290137265mm

Content List:

1 x Cosmo C1 Transmitter
1 x Cosmo C1 Receiver
4 x Antenna
2 x Mushroom Antenna
1 x Cold Shoe
1 x Peasecod Pan-tilt with Cold Shoe
1 x Type-C Converter
1 x Power Adapter
