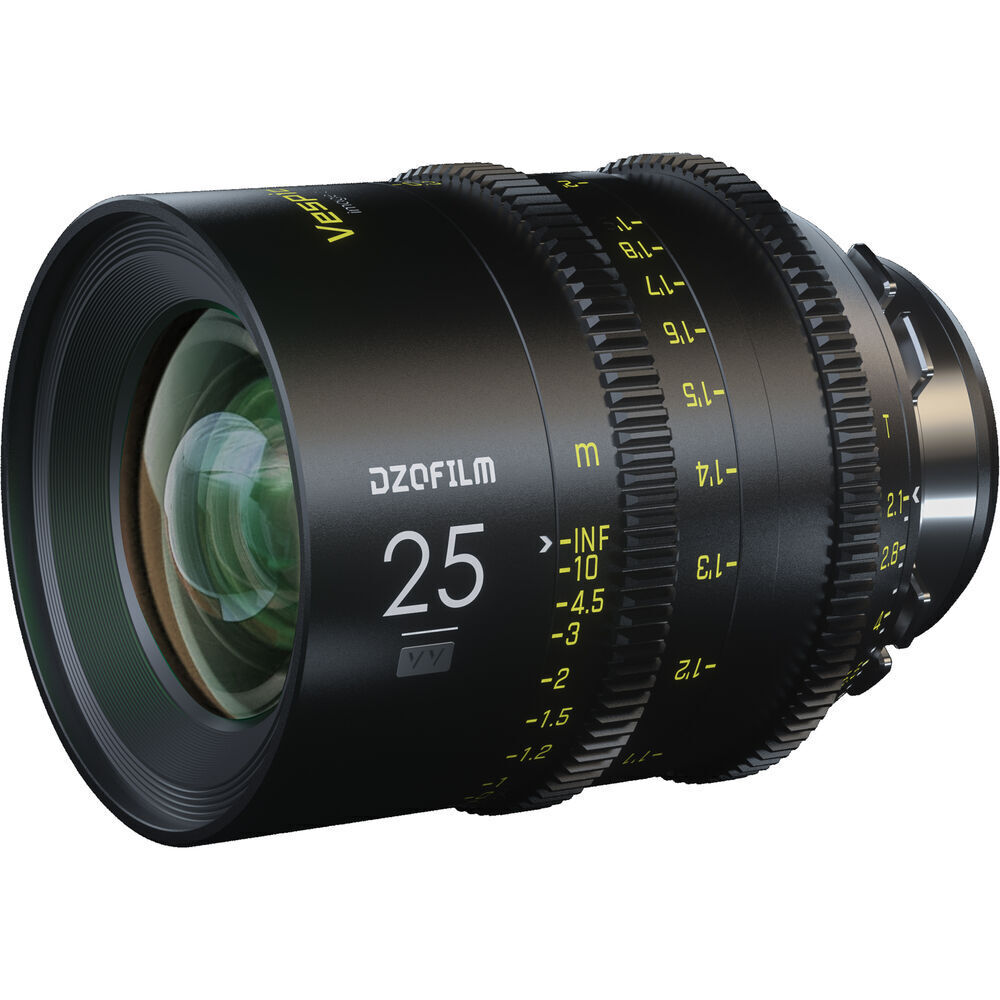

Relatively small and lightweight, the DZOFilm VESPID 25mm T2.1 Lens is part of the VESPID series of lenses from DZOFilm and is well suited for independent and high-end full-frame cinematography. The lens has an 80mm front diameter, allowing it to work with virtually any cine-style matte box. The small size makes this lens an attractive option when working with drones and gimbals, as well as when shooting handheld or run-and-gun. Sporting an interchangeable PL mount, this fully manual lens works with cameras that have a PL mount, and optional lens adapters allow you to use it on cameras with different mounts. The full-frame coverage of the lens supports sensors that have an image circle up to 46.5mm for use on cameras with sensors up to full-frame without vignetting.

The 16-blade iris, which is consistent throughout the VESPID prime lens lineup, creates round out-of-focus highlights that have a more natural appearance and contribute to the lens's natural-looking bokeh. The focus ring features 270° of rotation for precise focus pulls, and the iris ring a generous 64° of rotation. Cine-style gear rings on the focus and iris rings make the lens compatible with cine-style lens accessories such as follow focus units, lens motors, and lens control systems. The lens has a magnetically attached rear filter for ND filters.

Features:

  • The lens has an image circle that covers a full-frame sensor. When mounted on a camera with a Super35 sensor, it provides you with a tighter shot than if mounted on a camera with a full-frame sensor.
  • The lenses provide an organic look that is a cross between the modern-day cold and technically precise aesthetic and vintage cinema lenses.
  • The coated optics help provide natural-looking contrast while helping to control veiling glare and specular highlights, preventing flares from washing out your image.
  • The 16-blade iris makes for a natural-looking bokeh and creates smooth rounded out-of-focus highlights.
  • The modern mechanical design allows each lens to have a small size and light weight yet share the same 80mm front diameter and common gear positions for fast lens changes.

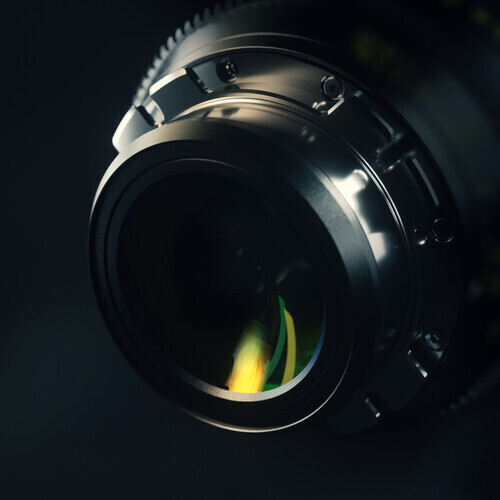

  • The rear of the lens has a magnetically attached rear filter that accepts optional ND filters that help you control exposure without affecting the iris setting or changing your depth of field.
  • The front of the lens has a 77mm filter thread, allowing you to use optional filters directly on the lens, which is useful when you need filtration when shooting without a matte box.
  • A minimum focusing distance of 12" allows you to get up close to your subject.

Specifications:

16mm

Focal Length 16mm
Lens Mount ARRI PL
Format Full Frame

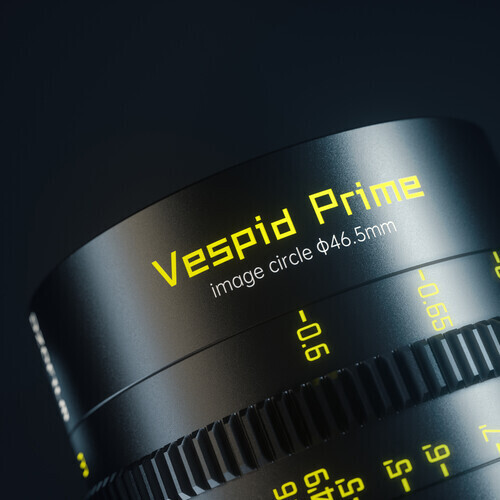

Image Circle 46.5 mm
Maximum T-Stop T2.8
Minimum T-Stop T22
Minimum Focus Distance From Image Plane: 0.984' / 0.25 m
Iris Blades 16
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Front Diameter 80 mm
Filter Thread 77 mm
Focus Scales Metric, Imperial
Focus Rotation 270°
Iris Rotation 50°
Electronic Communication No
Length 3.4" / 87 mm
Weight 33.2 oz / 930 g

21mm

Focal Length 21mm
Lens Mount ARRI PL
Format Full Frame
Image Circle 46.5 mm
Maximum T-Stop T2.1
Minimum T-Stop T22
Minimum Focus Distance From Image Plane: 1.0' / 0.3 m
Iris Blades 16
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Front Diameter 80 mm
Filter Thread 77 mm
Focus Scales Metric, Imperial
Focus Rotation 270°
Iris Rotation 64°
Electronic Communication No
Length 3.9" / 100 mm
Weight 33.2 oz / 940 g



25mm

Focal Length 25mm
Lens Mount ARRI PL
Format Full Frame
Image Circle 46.5 mm
Maximum T-Stop T2.1
Minimum T-Stop T22
Minimum Focus Distance From Image Plane: 1.0' / 0.3 m
Iris Blades 16
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Front Diameter 80 mm
Filter Thread 77 mm
Focus Scales Metric, Imperial
Focus Rotation 270°
Iris Rotation 64°
Electronic Communication No
Length 3.9" / 100 mm
Weight 33.2 oz / 940 g



35mm

Focal Length 35mm
Lens Mount ARRI PL
Format Full Frame
Image Circle 46.5 mm
Maximum T-Stop T2.1
Minimum T-Stop T22
Minimum Focus Distance From Image Plane: 1.0' / 0.3 m
Iris Blades 16
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Front Diameter 80 mm
Filter Thread 77 mm
Focus Scales Imperial
Focus Rotation 270°
Iris Rotation 63°
Electronic Communication No
Length 3.4" / 87 mm
Weight 29.4 oz / 834 g



40mm

Focal Length 40mm
Lens Mount ARRI PL
Format Full Frame
Image Circle 46.5 mm
Maximum T-Stop T2.1
Minimum T-Stop T22
Minimum Focus Distance From Image Plane: 1.0' / 0.3 m
Iris Blades 16
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Front Diameter 80 mm
Filter Thread 77 mm
Focus Scales Metric, Imperial
Focus Rotation 270°
Iris Rotation 64°
Electronic Communication No
Length 3.9" / 100 mm
Weight 34.6 oz / 980 g



50mm

Focal Length 50mm
Lens Mount ARRI PL
Format Full Frame
Image Circle 46.5 mm
Maximum T-Stop T2.1
Minimum T-Stop T22
Minimum Focus Distance From Image Plane: 1.21' / 0.37 m
Iris Blades 16
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Front Diameter 80 mm
Filter Thread 77 mm
Focus Scales Imperial
Focus Rotation 270°
Iris Rotation 58°
Electronic Communication No
Length 3.4" / 87 mm
Weight 25.8 oz / 732 g



75mm

Focal Length 75mm
Lens Mount ARRI PL
Format Full Frame
Image Circle 46.5 mm
Maximum T-Stop T2.1
Minimum T-Stop T22
Minimum Focus Distance From Image Plane: 2.0' / 0.6 m
Iris Blades 16
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Front Diameter 80 mm
Filter Thread 77 mm
Focus Scales Imperial
Focus Rotation 270°
Iris Rotation 68°
Electronic Communication No
Length 3.4" / 87 mm
Weight 30.5 oz / 865 g



90mm Macro

Focal Length 90mm
Lens Mount ARRI PL
Format Full Frame
Image Circle 46.5 mm
Maximum T-Stop T2.8
Minimum T-Stop T22
Minimum Focus Distance From Image Plane: 10.157" / 0.258 m
Iris Blades 16
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Front Diameter 80 mm
Filter Thread 77 mm
Focus Scales Metric, Imperial
Focus Rotation 300°
Iris Rotation 68°
Electronic Communication No
Length 4.4" / 112 mm
Weight 28.2 oz / 800 g



100mm

Focal Length 100mm
Lens Mount ARRI PL
Format Full Frame
Image Circle 46.5 mm
Maximum T-Stop T2.1
Minimum T-Stop T22
Minimum Focus Distance From Image Plane: 2.3' / 0.7 m
Iris Blades 16
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Front Diameter 80 mm
Filter Thread 77 mm
Focus Scales Imperial
Focus Rotation 270°
Iris Rotation 83°
Electronic Communication No
Length 3.9" / 100 mm
Weight 31.4 oz / 890 g



125mm

Focal Length 125mm
Lens Mount ARRI PL
Format Full Frame
Image Circle 46.5 mm
Maximum T-Stop T2.1
Minimum T-Stop T22
Minimum Focus Distance From Image Plane: 2.59' / 0.79 m
Iris Blades 16
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Front Diameter 80 mm
Filter Thread 77 mm
Focus Scales Imperial
Focus Rotation 270°
Iris Rotation 84°
Electronic Communication No
Length 3.9" / 100 mm
Weight 32.6 oz / 924 g



SKU DZO-VPL
Barcode # 842463104112
Brand DZOFILM
Shipping Weight 3.0000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.150m
