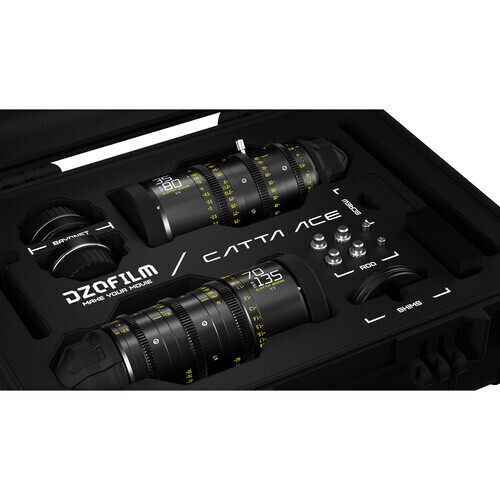

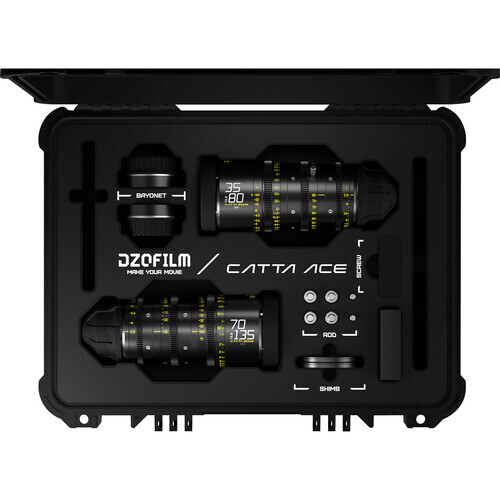

Add two full frame zoom lenses to your production kit to cover numerous focal lengths and cameras with this CATTA Ace FF 35-80 & 70-135mm T2.9 Zoom Lens Bundle from DZOFilm. The kit includes a PL-mount CATTA Ace full frame 35-80mm zoom lens, a PL-mount CATTA Ace full frame 70-135mm zoom lens, two front lens caps, two rear caps, two EF bayonets, two EF rear caps, two shim sets, two support bases, and two support rods. The included EF mount kits allow you to interchange the PL mounts without requiring manufacturer intervention. A safety case is also included to store and transport the entire bundle.
Read more below about the lenses in this kit.
DZOFilm Catta Ace 35-80mm T2.9 PL-Mount Cine Zoom Lens (Black)
Add a cinema zoom lens to your documentary, broadcast, or online production kit with this white Catta Ace 35-80mm T2.9 PL-Mount Cine Zoom Lens from DZOFilm. The cine lens is designed to maintain focus as you smoothly zoom in or out. The Catta line reproduces accurate color and features a smooth focus/defocus transition. It features a wide T2.9 to T22 aperture, a 16-blade iris for a smooth bokeh, and a long 29.1" close focus range.
True to its cine design, it has a focus rotation of 240°, a 100° zoom rotation range, and a 75° iris rotation range. The lens features a PL mount, and an EF mount bayonet is included to change out with the included screws and shim kit. Multiple accessories are included with the lens, including front and rear lens caps, a shim set, a support base, and a support rod.
DZOFilm Catta Ace 70-135mm T2.9 PL-Mount Cine Zoom Lens (Black)
Add a cinema zoom lens to your documentary, broadcast, or online production kit with this black Catta Ace 70-135mm T2.9 PL-Mount Cine Zoom Lens from DZOFilm. The cine zoom lens is designed to maintain focus as you smoothly zoom in or out. The Catta line reproduces accurate color and features a smooth focus/defocus transition. It features a wide T2.9 to T22 aperture, a 16-blade iris for a smooth bokeh, and a long 29.9" close focus range.
True to its cine design, it has a focus rotation of 240°, a 100° zoom rotation range, and an 80° iris rotation range. The lens features a PL mount, and an EF mount is included to change out using a screw and shim set. Multiple accessories are included with the lens, including front and rear lens caps, a support base, a support rod, and a filter bracket.
Key Features
70 to 135mm zoom range:
- Minimal breathing
- 16-blade iris with a soft bokeh
- T2.9 to T22 aperture; 1.9x magnification ratio
- 240° focus rotation; 100° zoom rotation; 80° iris rotation
- 29.9" minimum focus distance
- 80mm front diameter
- 0.8 MOD gears
35 to 80mm zoom range:
- Minimal breathing
- 16-blade iris with a soft bokeh
- T2.9 to T22 aperture; 2.3x magnification ratio
- 240° focus rotation; 100° zoom rotation; 75° iris rotation
- 29.1" minimum focus distance
- 80mm front diameter
- 0.8 MOD gears
DZOFilm Catta Ace 35-80mm T2.9 PL-Mount Cine Zoom Lens (Black) Specs
Focal Length | 35 to 80mm |
Lens Mount | ARRI PL |
Format | Full Frame |
Image Circle | 43.5 mm |
Maximum Aperture | T2.9 |
Minimum Aperture | T22 |
Minimum Focus Distance | From Unspecified Point in Lens: 29.5" / 75 cm |
Optical Design | 20 Elements in 15 Groups |
Diaphragm Blades | 16 |
Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch Zoom: 0.8 MOD / 32 Pitch |
Front Diameter | 80 mm |
Filter Thread | 77 mm |
Focus Scales | Imperial |
Focus Rotation | 240° |
Iris Rotation | 75° |
Zoom Rotation | 100° |
Zoom Ratio | 2.3x |
Electronic Communication | No |
Image Stabilization | No |
Weight | 3.4 lb / 1532 g |
DZOFilm Catta Ace 70-135mm T2.9 PL-Mount Cine Zoom Lens (Black) Specs
Focal Length | 70 to 135mm |
Lens Mount | ARRI PL |
Format | Full Frame |
Image Circle | 43.5 mm |
Maximum Aperture | T2.9 |
Minimum Aperture | T22 |
Minimum Focus Distance | From Unspecified Point in Lens: 29.9" / 76 cm |
Optical Design | 17 Elements in 11 Groups |
Diaphragm Blades | 16 |
Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch Zoom: 0.8 MOD / 32 Pitch |
Front Diameter | 80 mm |
Filter Thread | 77 mm |
Focus Scales | Imperial |
Focus Rotation | 240° |
Iris Rotation | 80° |
Zoom Rotation | 100° |
Zoom Ratio | 1.9x |
Electronic Communication | No |
Image Stabilization | No |
Weight | 3.5 lb / 1597 g |
Content List:
2 x DZOFilm Catta Zoom PL mount lens
2 x Front Lens Cap
2 x Rear Lens Cap
2 x EF bayonet
2 x EF Rear cap
2 x Shim Set
2 x Support Base
2 x Support Rod
SKU | 432193 |
Barcode # | 842463108240 |
Brand | DZOFILM |
Shipping Weight | 10.0000kg |
Shipping Width | 0.650m |
Shipping Height | 0.240m |
Shipping Length | 0.550m |
