Features:

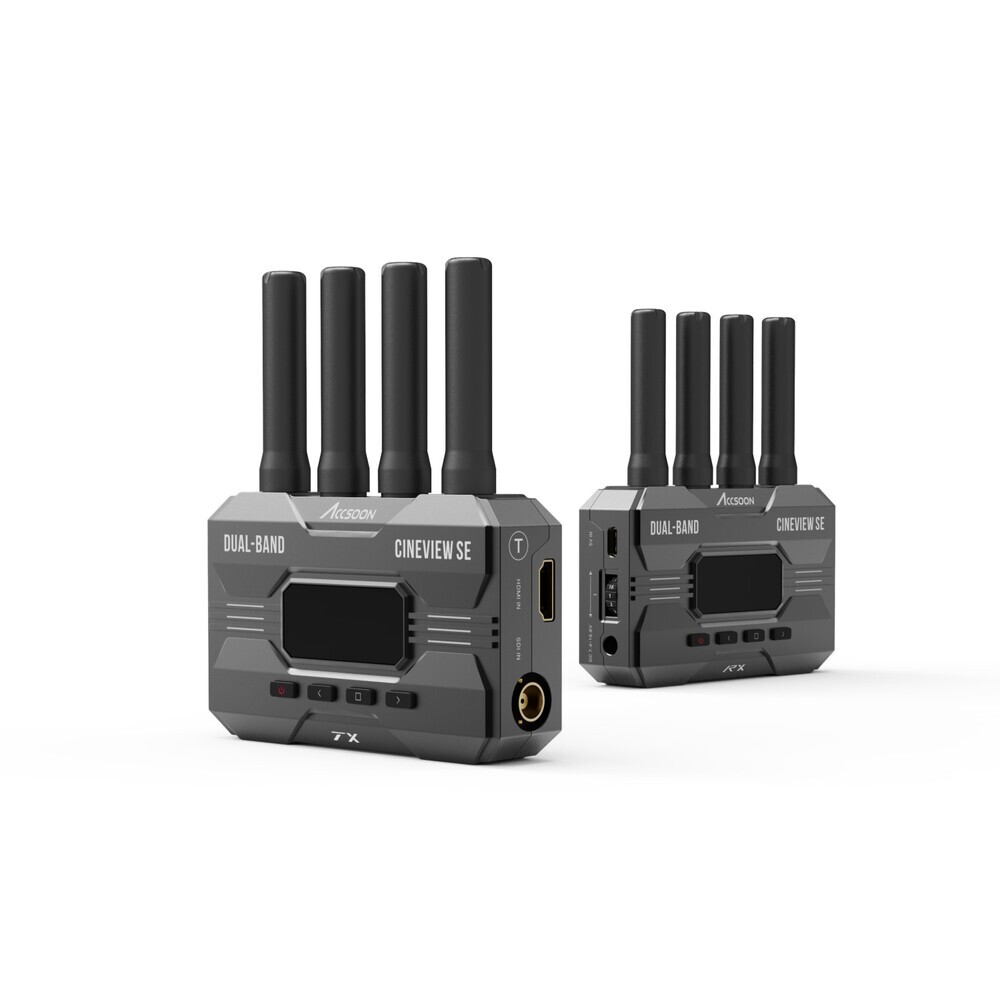

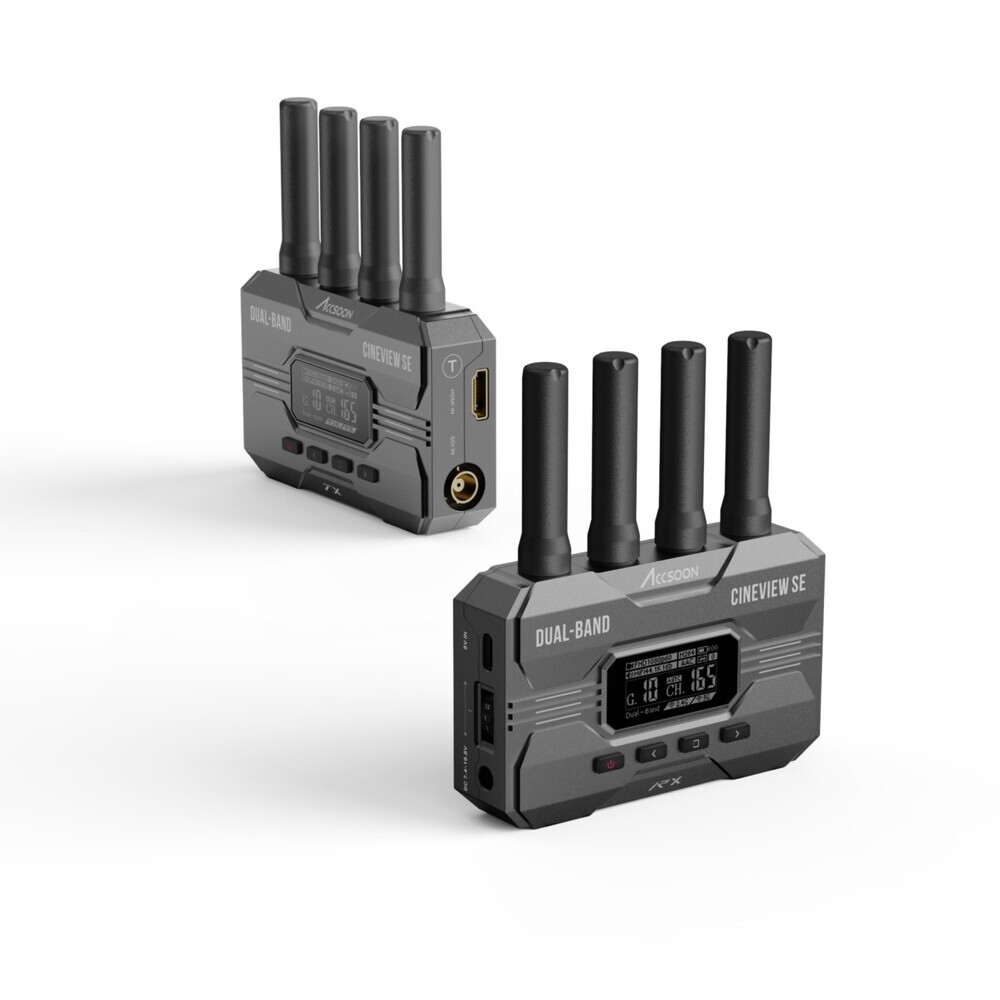

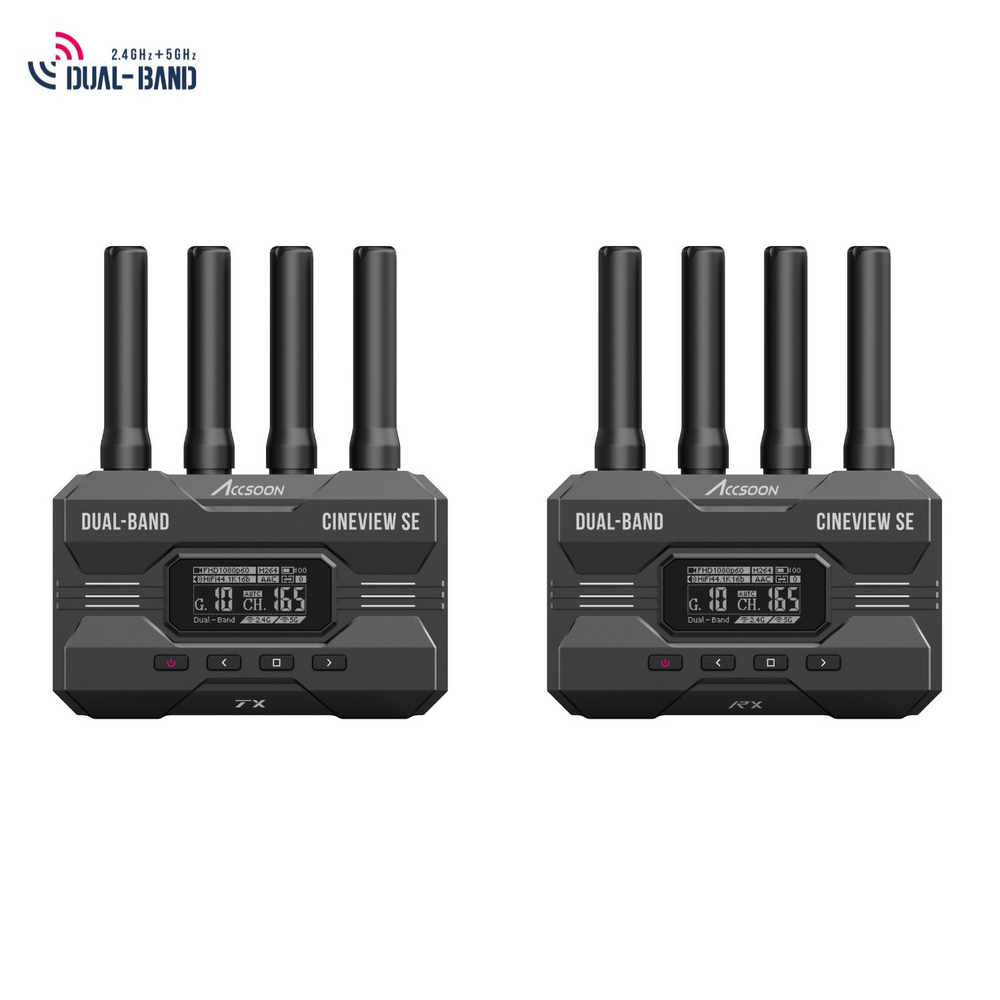

CineView SE (WIT04-SE)

● Dual-band (2.4G + 5G) WiFi Simultaneous transmission, strong anti-interference
● Transmission range up to 1200ft

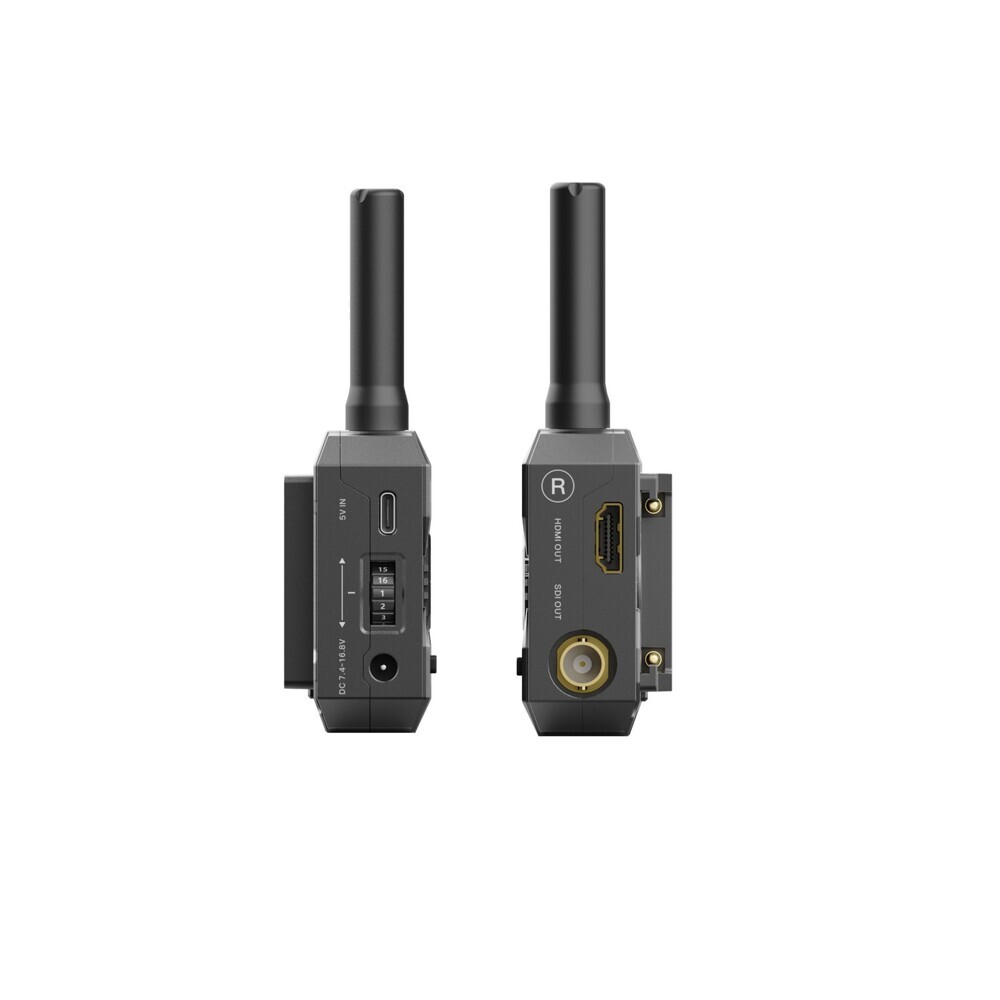

● Transmitter: SDI in + HDMI in, Receiver: SDI out + HDMI out
● Very low latency <0.05 seconds
● Transmit up to 4 devices (dedicated RXs and mobile devices, mix and match)
● Professional monitoring App for iOS and Android (upgradable), support (RTMP)
live-streaming direct via App
● Low 3.5W-4.5W power consumption, no fan noise
● 1.3 inch OLED display
● Power by DC source and NP-F battery and USB-C
● Automatic channel selection for optimal transmission
● Group pairing knob on TX & RX



Specification
  Transmitter Receiver
Video Input SDI/HDMI
Video Output   SDI/HDMI
SDI Input Format 1080p 23.98/24/25/29.97/30/50/59.94/60fps
Level A/B

SDI Output Format   1080p 24/25/30/50/60fps
Level A
HDMI Input Format 1080p 23.98/24/25/29.97/30/50/59.94/60fps
HDMI Output Format 1080p 23.98/24/25/29.97/30/50/59.94/60fps 1080p 24/25/30/50/60fps
DC Port 5.5mmx2.1mm, center positive
DC Voltage 7.4~16.8V
Audio 44.1KHz/48KHz 16bit/24bit PCM
Latency <0.05s
(Camera latency not included)

OLED Display 1.3 inch 1.3 inch
Transmission Power 17~20dBm
Transmission Range 1200ft
(No obstacles, no interference)

Power Consumption 4.5 Watt
(Typical)
3.5 Watt
(Typical)
Operating
Environment Temperature
-10~40℃
Dimensions
(Antennas Not Included)
105mmx66mmx32mm
Weight
(Antennas Not Included)
210g 210g
SKU WIT04-SE
Barcode # 664918771751
Brand Accsoon
Shipping Weight 1.0000kg
Shipping Width 0.250m
Shipping Height 0.150m
Shipping Length 0.200m
